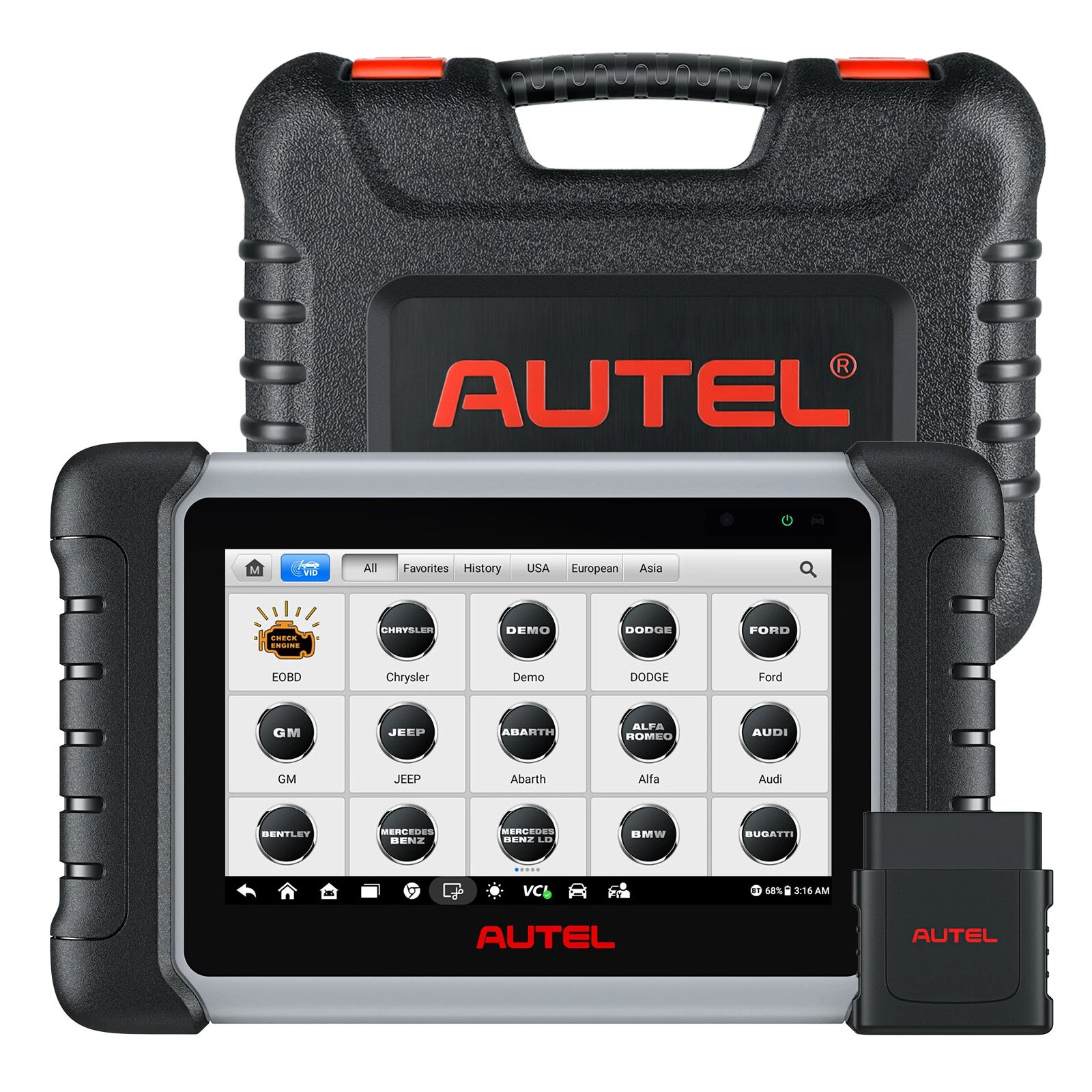

Autel MaxiCOM MK808BT BiDirectional Full System Diagnostic Tool

MK808K-BT

Name: Autel MaxiCOM MK808BT BiDirectional Full System Diagnostic Tool
Price: 358 GBP
Availability: InStock

Autel MaxiCOM All system diagnosis

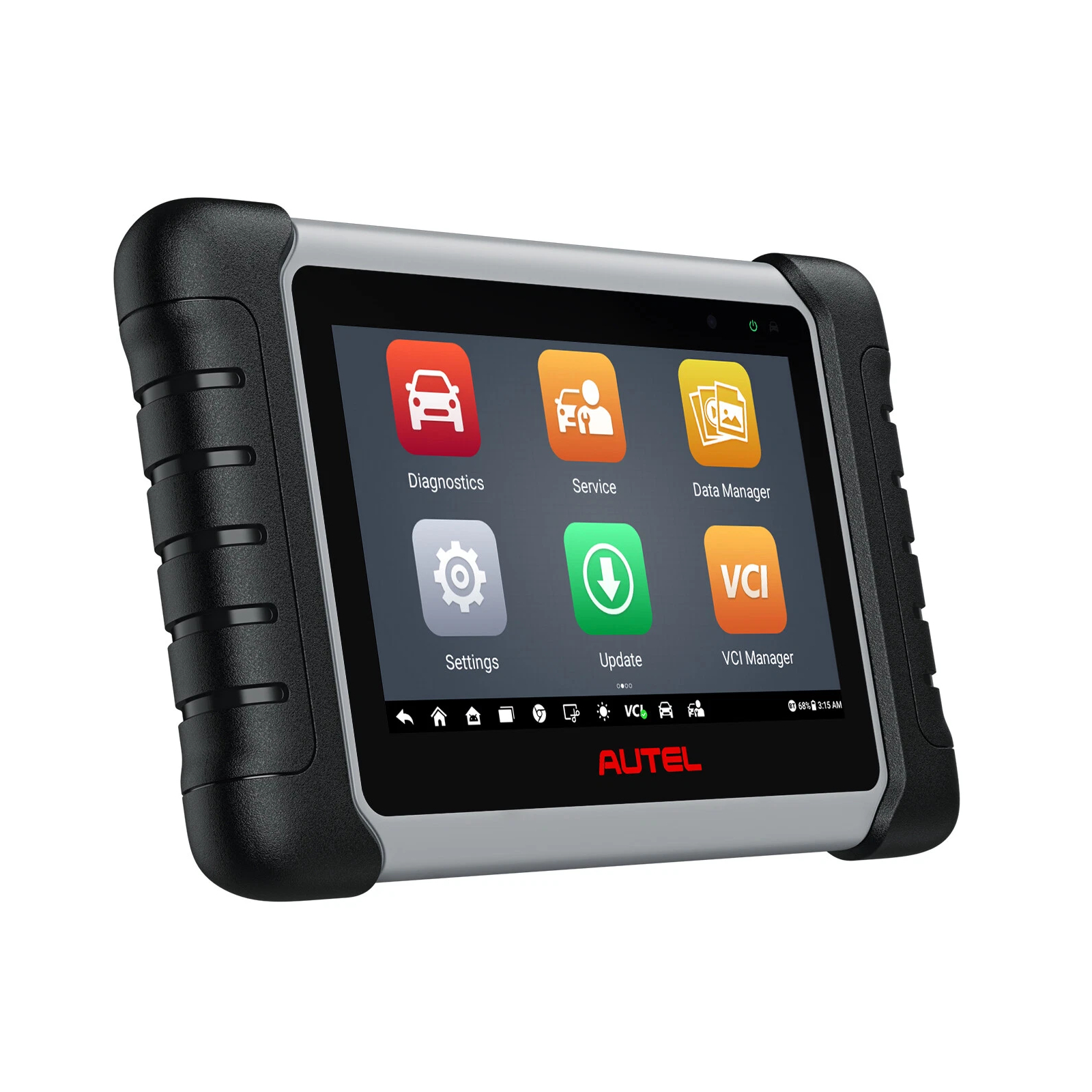

Featuring the powerful Rockchip RK3566 processor, and a 7.0 inch LCD capacitive touchscreen, based on the Android 11 multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808K-BT is your ideal auto diagnostic and service tool. MK808Z-BT PRO provides you with 40+ superior special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).

Features

✅One Year Free Update Online on Autel Official Website. After One Year, Autel MK808K-BT One Year Update Service Charges 117 GBP / Year.

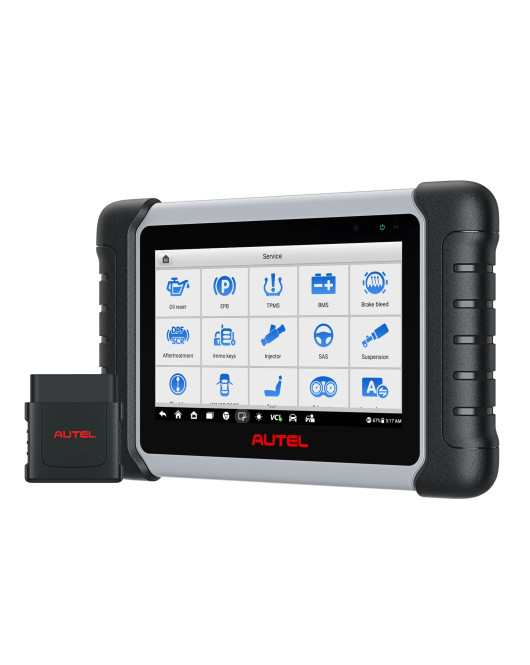

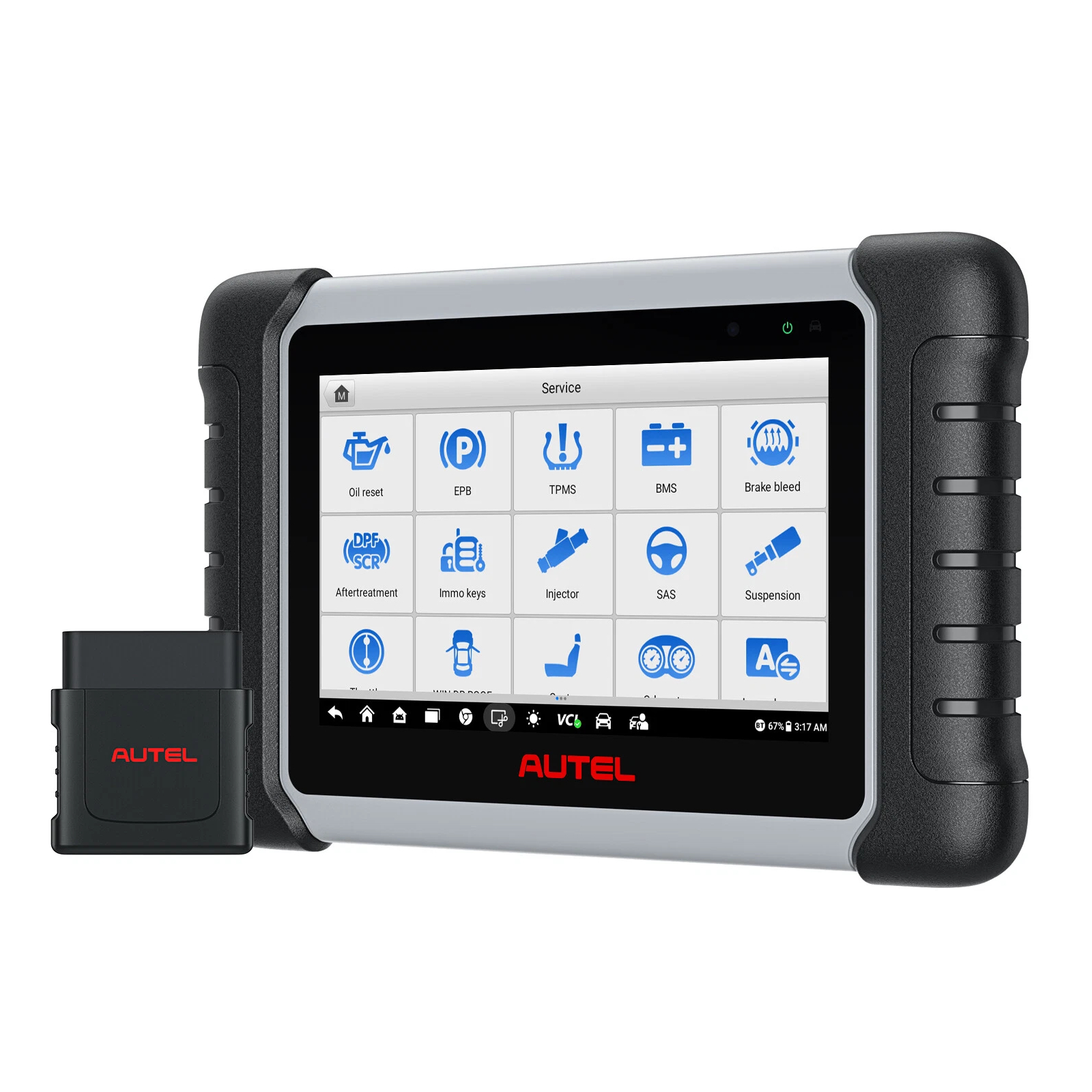

✅Supported 40+ Services: ABS, DPF, EPB, SAS, SRS, TPMS, BMS, Oil Service Reset, etc.
✅Bi-directional Control and Active Test.
✅Perform bi-directional Active Tests.
✅40+ Services.
✅AutoVIN technology, Cloud-based Report Management, Remote Desk.
✅Vehicles Supported: Support Asian and European vehicles,1996-2025. Adds FCA AutoAuth: Unlock SGW module on 2018+ Chrysler and Fiat Vehicles; Renault SGW (2015+).
✅Mult-Language Supported: English, German, Italian, Spanish, French, Dutch, Portuguese, Swedish, Polish, Korean, Russian. Autel Pre-selected Language Operation Guide
✅ UK-based service and support.

Device Specifications

Recommended Use: Indoor
Operating System: Android 11
Processor: Rockchip RK3566 processor
Memory: RAM 4G+ROM 64G
Display: 7-inch LCD capacitive touchscreen with 1024 x 600 resolution

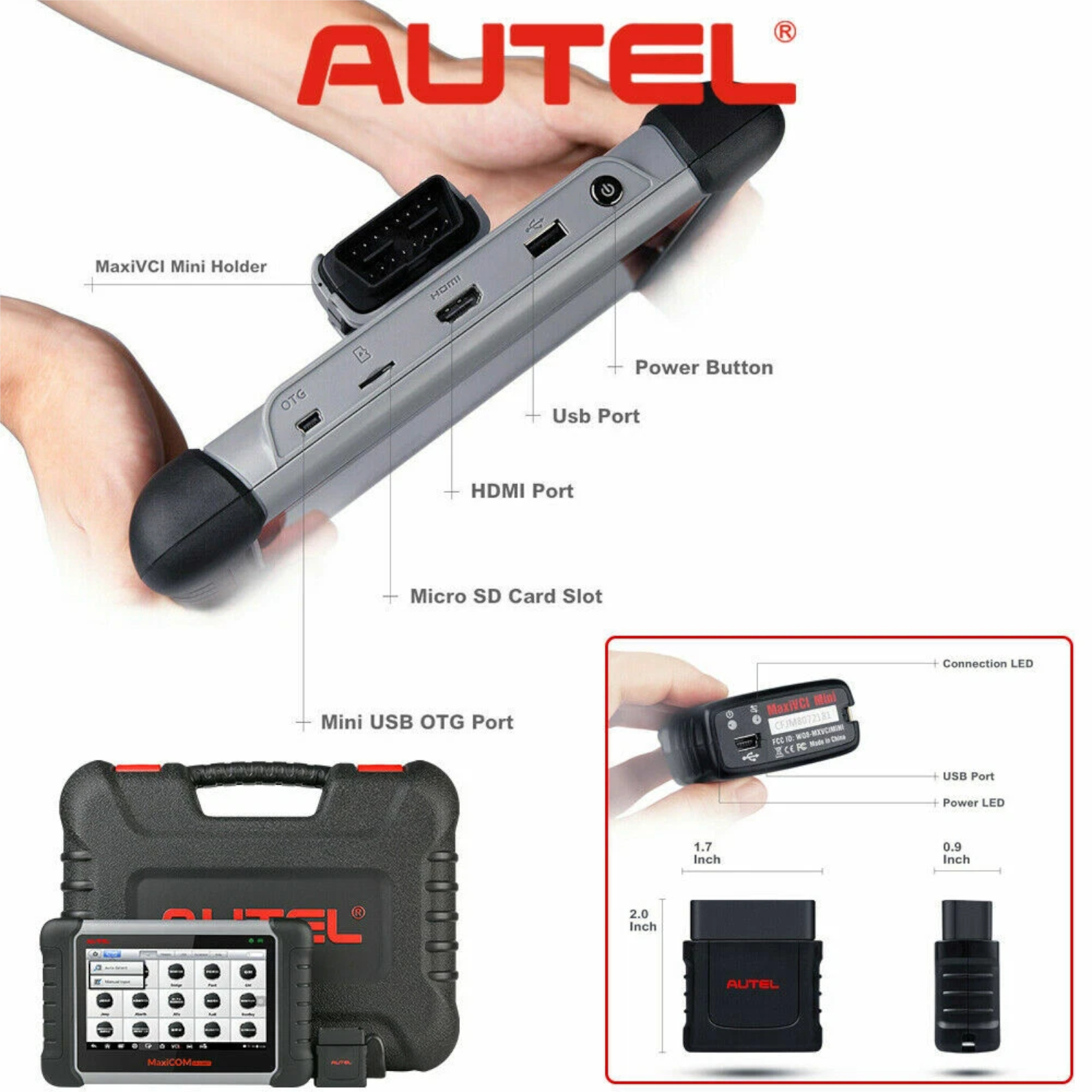

Connectivity: Mini USB 2.0, USB2.0, Wi-Fi(2.4 & 5GHz), HDMI Type A, Micro SD card slot(supports up to 64GB)
Sensors: Light sensor for brightness auto changing
Audio input/output: Input: N/A Output: buzzer
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life: Around 7 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
Operating Temp: 0 to 55°C(32 to 131°F)
Storage Temp: -20 to 60°C (-4 to 140°F)
Operating Humidity: 5% - 95% non-condensing
Dimensions (W x H x D): 237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight: 788 g (2.42 lb.)
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

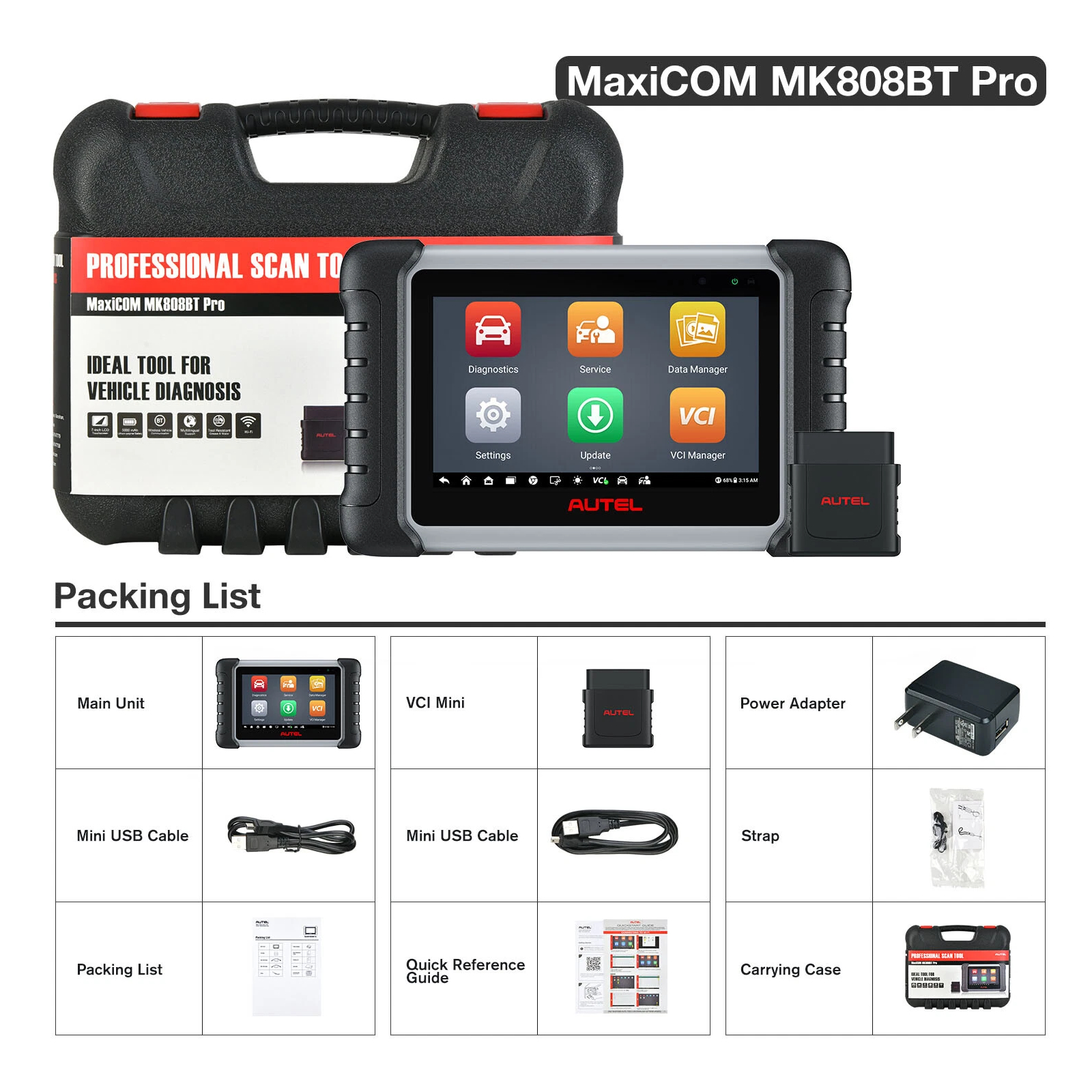

Set includes

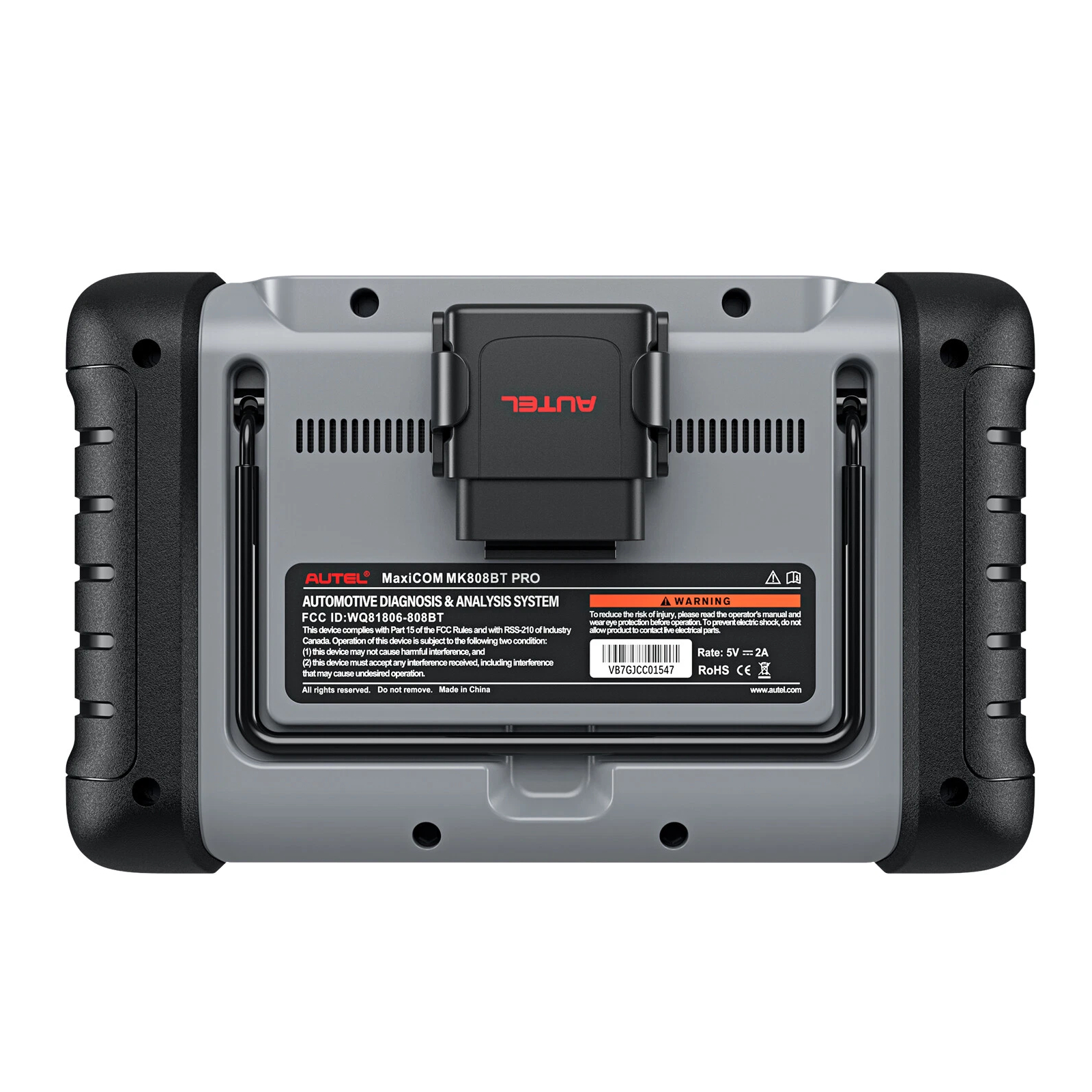

1x MK808K-BT main unit

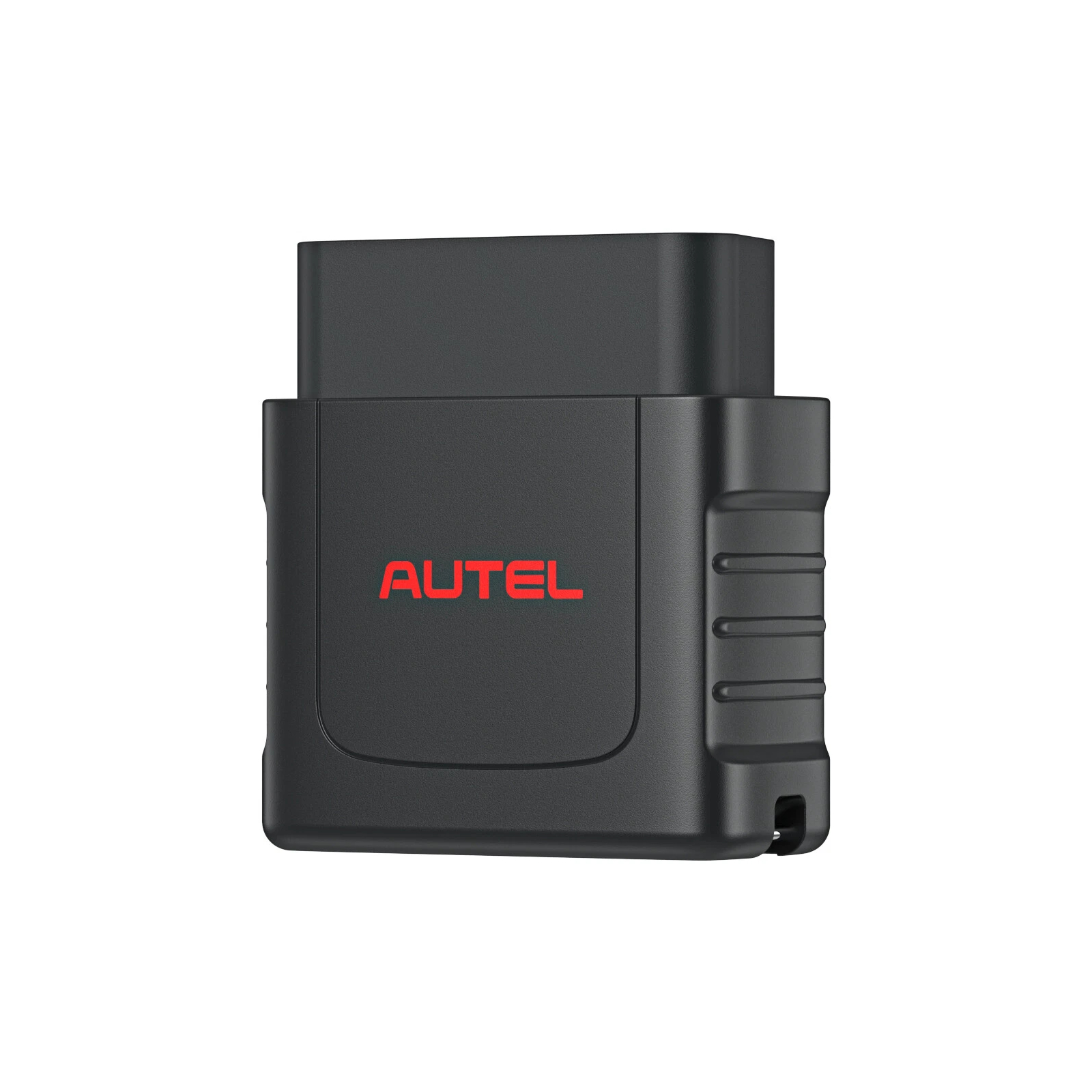

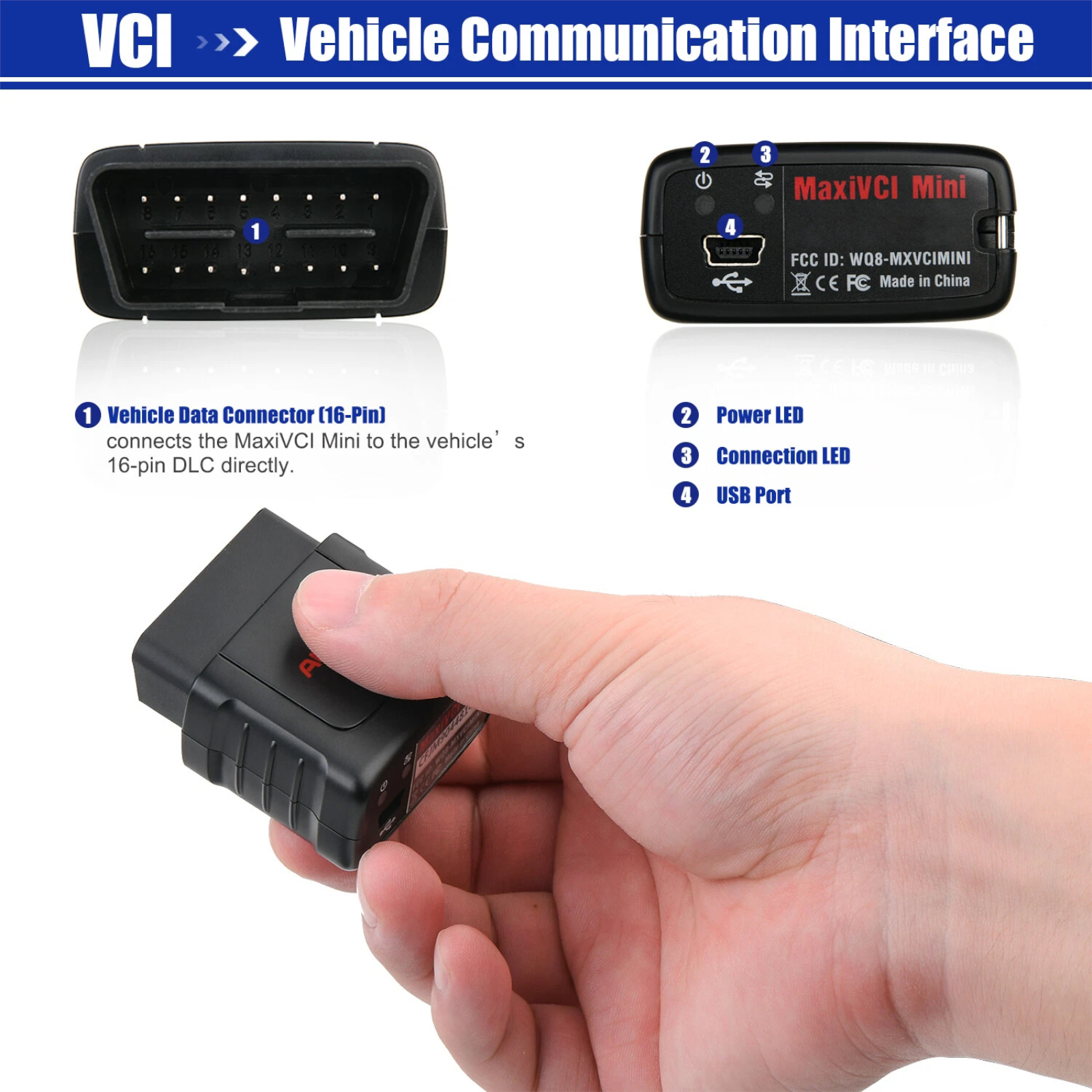

1x MaxiVCI Mini
1x Mini USB cable
1x USB Type-C cable
1x strap
1x power adapter
1x quick reference guide
1x packing list
1x soft cloth

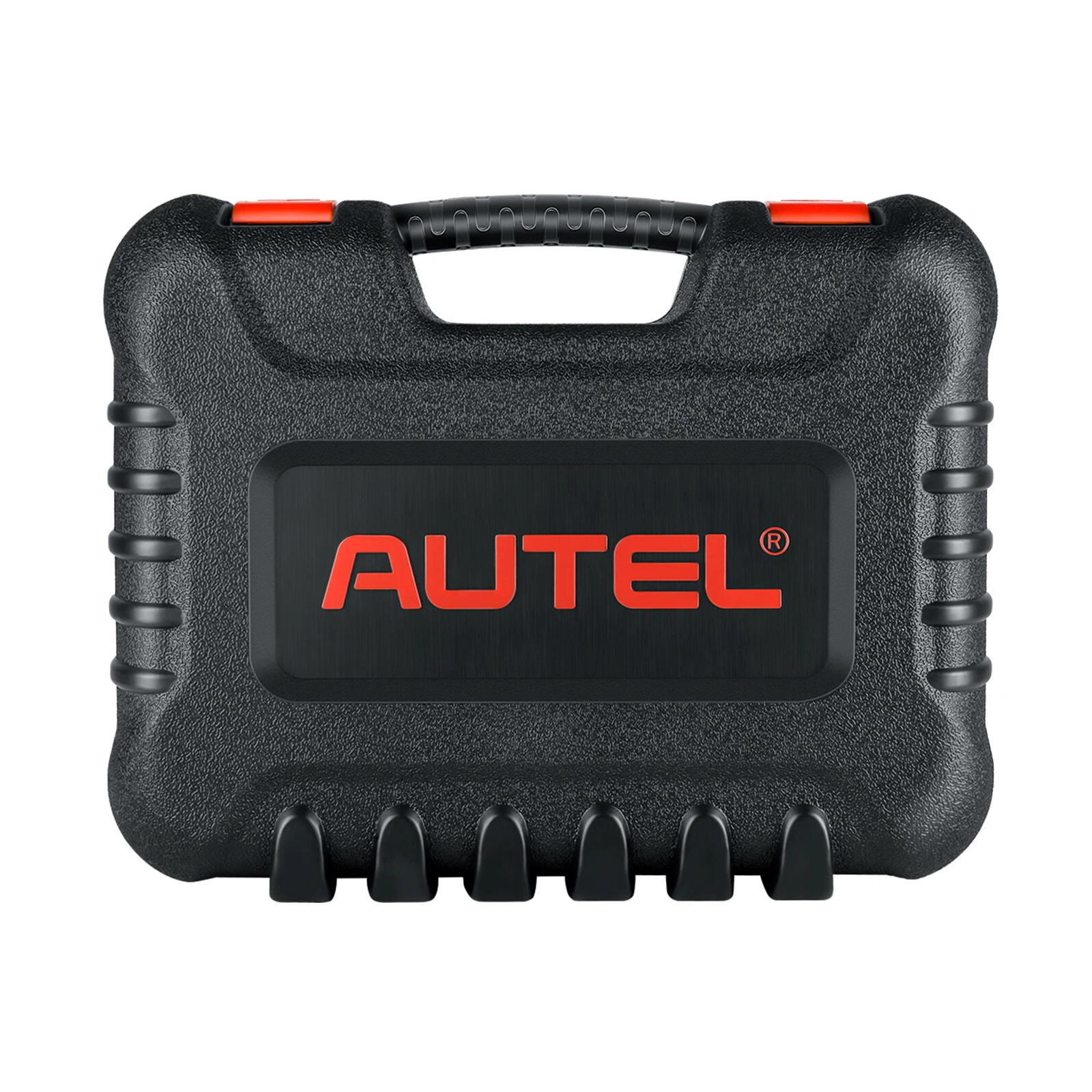

1x carrying case

Connectivity
Connection Method	WiFI, Bluetooth, USB 2.0
Diagnostic Port	OBD2 Wireless
Material
Durability	Vibration Resistant
Grip Type	Anti-Slip
Software
Language	English
Management Tool	Autel
Operating System	Android 11
Update	1 Year Free
VCI
Bi-Directional	YES
CANFD	NO
DoIP	NO
LED	NO
OBD2 Protocols	CAN, VPW, PWM, ISO9141, KWP2000 (Supports All 9 OBD2 Protocols)
Operating Humidity	10%~90%
Operating Temperature	0 to 50°C (32 to 122°F)
Processor	Quad core Processor(1.8GHz)
Smart Switch	NO
Storage Humidity	<80%
Storage Temperature	-10 to 60°C (14 to 140°F)
Vehicle Support
Region Compatibility	Asia, Australia, EU, UK, US
Service Functions	28+
Supported Makes	Ford, Chrysler, GMC, Jeep, Chevrolet, Buick, Hummer, Lincoln, Dodge, Mercedes-Benz, Sprinter, Fiat, Land Rover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, MINI, SEAT, Škoda, Vauxhall, Volkswagen, Renault, Saab, Smart, Volvo, Abarth, Alfa Romeo, Bentley, Bugatti, Citroën, Dacia, Jaguar, Lamborghini, Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, SsangYong, Subaru, Suzuki, GTR, Scion.
Vehicle Types	Passenger Cars
