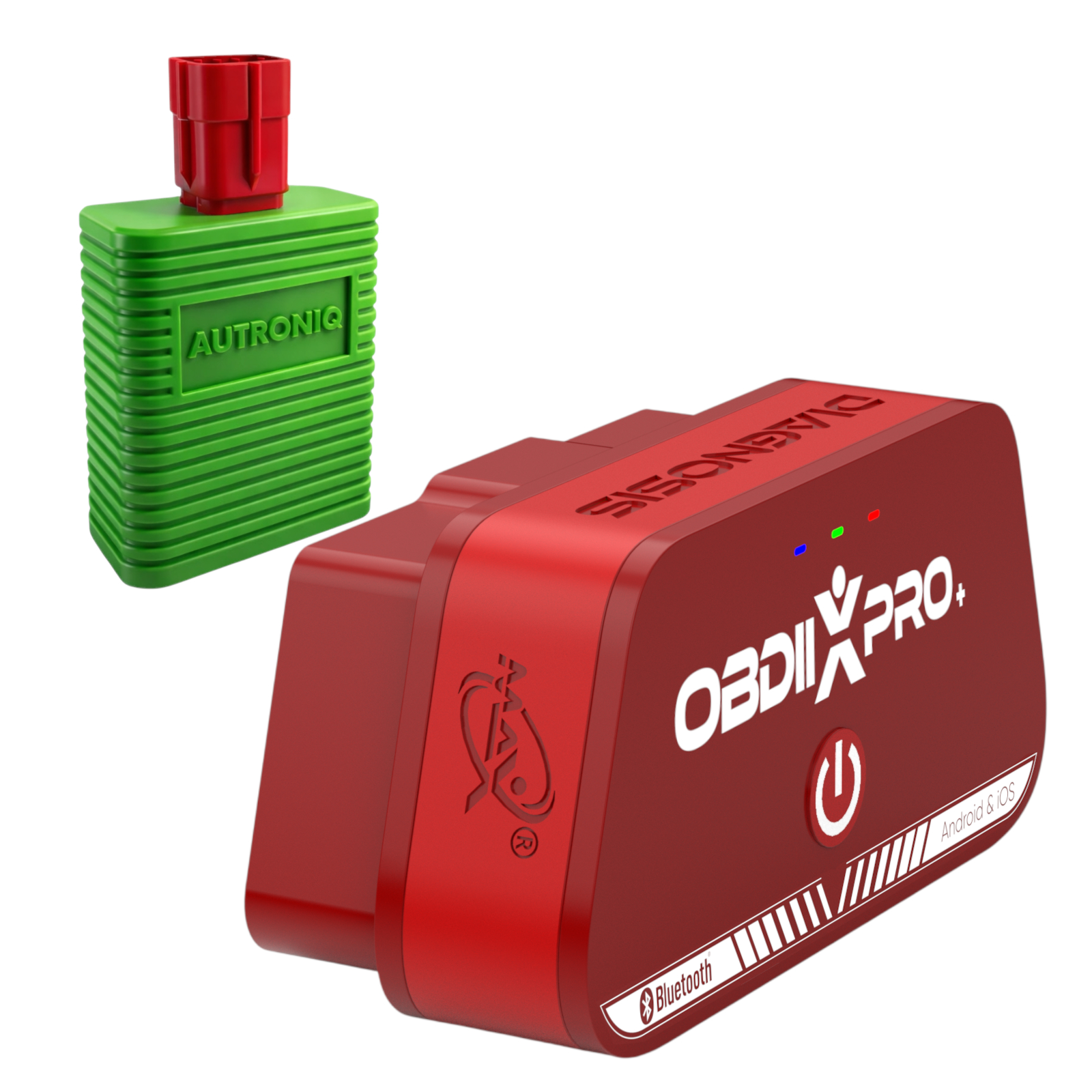

Maxidiagnosis OBDIIXPRO OBD2 ELM327 Bluetooth diagnostic scanner tool for Triumph
Engine Doctor for Triumph Motorcycles
XPRO327B-TRI
OBDIIXPRO XPRO327B-TRI Triumph Engine Diagnostic tool
Plug and Play easily connect with this Bluetooth OBDII adaptor for check engine light compatibility, suitable for Android, iOS, Windows, and Linux, utilising apps such as InCarDoc, Torque, FasLink X, OBD Fusion, Car Scanner, etc. This versatile device allows DIY enthusiasts to tackle basic engine issues, working with all vehicles compliant with OBDII and featuring a standard 16-pin connector, 12V voltage. Benefit from a range of functions, including data streaming, code reading, code clearing, I/M readiness, and many more.
Features
- ✅Slim Design for easier handling and installation, perfect for on-the-go diagnostics.
- ✅Service light fault code may be supported for certain applications, the choice is yours.
- ✅Dual-system diagnostic with optional engine and transmission.
- ✅Multi-Language support (English, Spanish, French, German, Italian, Dutch).
- ✅Quickly indicate engine faults with.
- ✅Support all OBDII vehicles (US, European and Asian).
- ✅Turns off Check Engine Light (MIL), clears codes.
- ✅Views freeze frame data.
- ✅Views the Live data stream.
- ✅Displays monitor and I/M readiness status (emissions).
- ✅Identifies pending codes.
- ✅Retrieves vehicle information (VIN, CIN and CVN).
- ✅Supports CAN (Controller Area Network) and all other current OBD-II protocols.
- ✅Small in size and conveniently fits anywhere.
Additional Features
- Read readiness monitor status to make sure your car is ready for emissions testing
- Read On-Board Diagnostic Monitors for advanced diagnostics
- Read OBD 2 Diagnostic Trouble Codes (DTC) and Freeze Frame
- Clear the trouble codes and reset the Check Engine Light
- Select PIDs on the dashboard to track them in live
- Monitor fuel consumption while you drive and save money on fuel (gasoline/diesel)
- View OBD parameter and sensor data (such as engine coolant temperature or torque) in real-time to detect abnormalities
- Monitor OBD-II sensor data in numerical or graphical presentation
- Support for multiple electronic control units such as engine or transmission
- Send OBD 2 diagnostic data via email
- Record and send sensor data via email in .csv format
- Read Vehicle Identification Number (VIN), Calibration Identifications, and Calibration Verification Numbers of ECU
- Build-in DTC database with over 18000 trouble codes, including thousands of manufacturer-specific codes
OBD II Protocols
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- 1509141-2 (5 baud init, 10.4 kbaud)
- 15014230-4 KWP (5 baud init, 10.4 kbaud)
- 15014230-4 KWP (fast init, 10.4 kbaud)
- IS015765-4 CAN (11 bit ID, 500 kbaud)
- 15015765-4 CAN (29 bit ID, 500 kbaud)
- 15015765-4 CAN (11 bit ID, 250 kbaud)
- 15015765-4 CAN (29 bit ID, 250 kbaud)
- SAE J1939 CAN (29 bit ID, 250* kbaud)
- USER1 CAN (11* bit ID, 125* kbaud)
- USER2 CAN (11* bit ID, 50* kbaud)
Specifications
- OBD Interface: OBDII, EOBD, Battery Check
- Compatibility: Android, iOS, Windows and Linux
- Operating Voltage: 9V to 16V
- Operating Current: 32mA
- Working Temperature: 0-62°C
- Dimensions: 48x25x23mm
- Package Weight:200g
Set includes
- OBDIIXPRO XPRO327B-TRI Diagnostic Tool
- Flat full 16 Pin Cable
- PDF Manual
| Connectivity |
| Connection Method |
Bluetooth |
| Diagnostic Port |
OBD2 Direct Plug |
| Information |
| Condition |
New |
| User Manual |
Booklet, PDF |
| Warranty |
12 months |
| Material |
| Durability |
Impact Resistant |
| Grip Type |
Ergonomic |
| Material Type |
ABS Plastic |
| Software |
| Language |
English, Spanish, Italian, French, German, Dutch, Polish, Portuguese, Swedish, Russian etc. |
| Operating System |
Android, iPhone, Windows, Linux |
| Update |
In-App Update |
| VCI |
| Bi-Directional |
Yes |
| OBD2 Protocols |
CAN, VPW, PWM, ISO9141, KWP2000 (Supports All 9 OBD2 Protocols) |
| Operating Humidity |
<60% |
| Operating Temperature |
-30℃ ～ 70℃ |
| Smart Switch |
Yes |
| Storage Humidity |
<80% |
| Storage Temperature |
-20℃ ～ 65℃ |
| Vehicle Support |
| Region Compatibility |
Asia,EU,UK,US |
| Service Functions |
Depends on third-party applications |
| Supported Makes |
Support all OBDII vehicles and all Triumph Motorcycles |
| Vehicle Types |
Motorcycle, Passenger Car |
