OBDSTAR P004 Basic Kit ECU Programming
ECU Programming & Reading
P004
P004 basic kit works with KeyMaster G3, P50 from OBDSTAR for airbag reset. It's friendly, economical, convenient to vehicle repair plants and fast repair shops.
Vehicle Coverage
- Acura, Audi, Benz, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Dodge,d, GMC, GreatWall, Honda, Hyundai, Infiniti, Jaguar, Jeep, KIA, Land Rover, Lincoln, Maserati, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Subaru, Suzuki, Tesla, Toyota, VW, Volvo
- Over 3000 EC.U part No.(supporting fuzzy search)
- MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570
Features

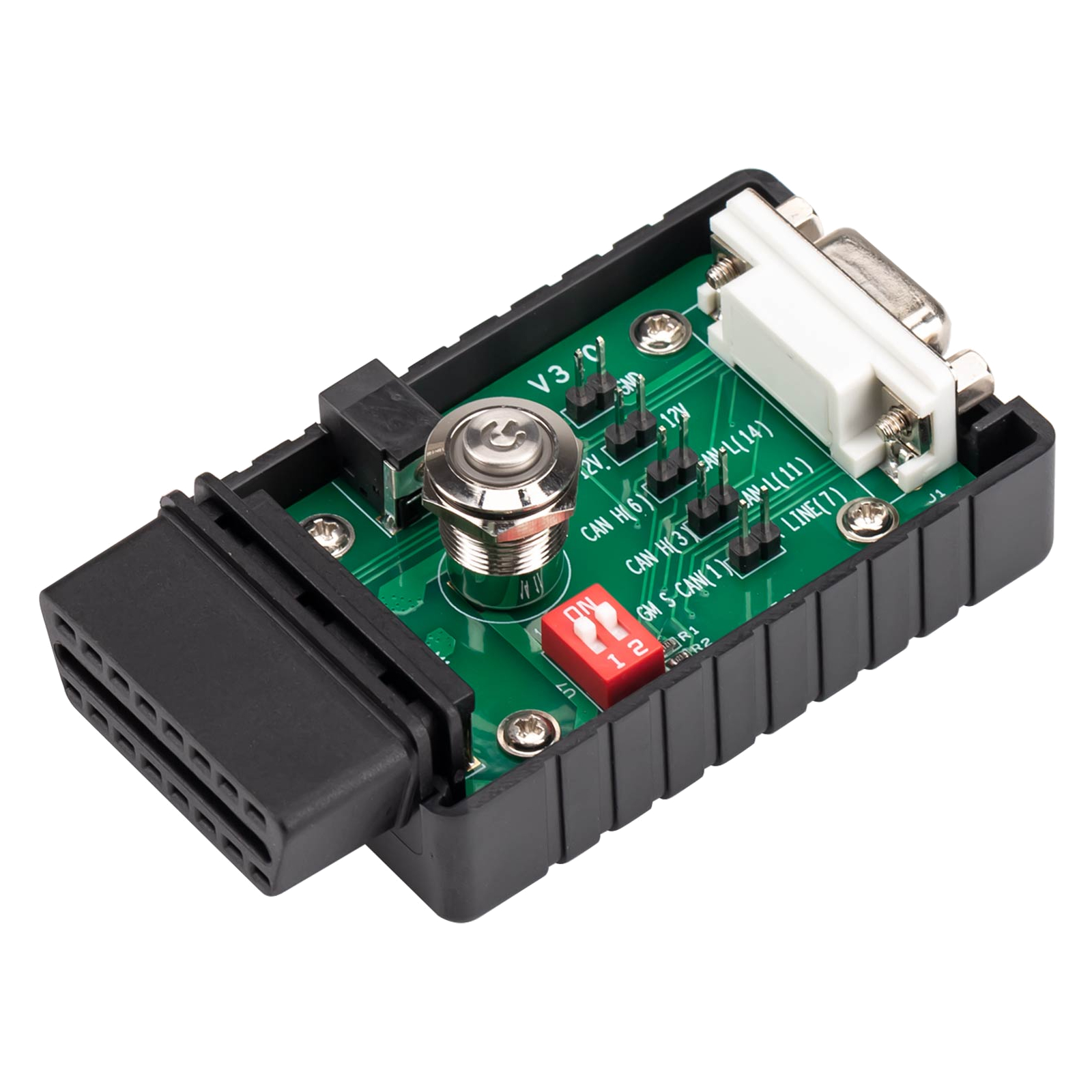

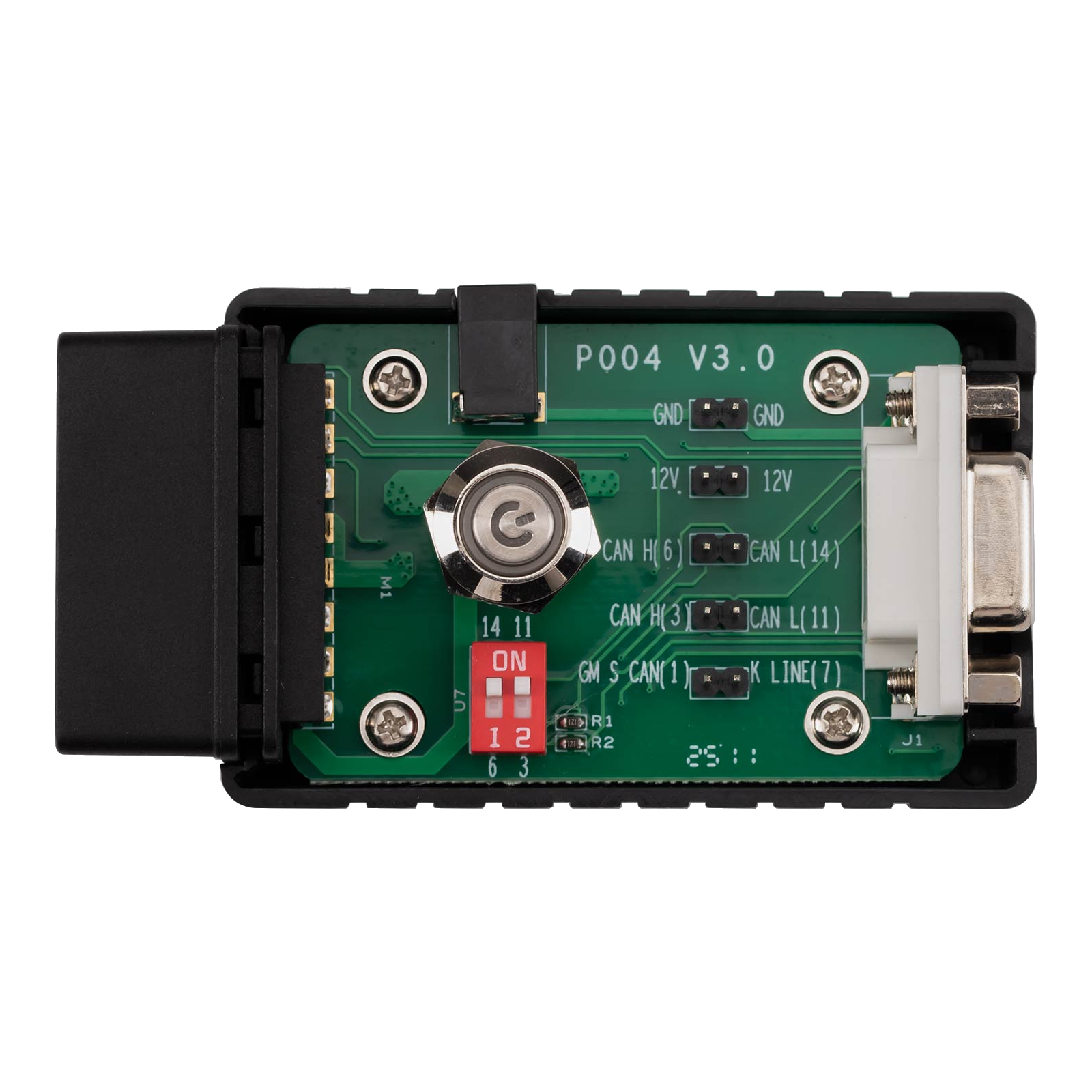

P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has its merits below:
- Programming devices keep in normal communication no matter turn on or off 12V power button.
- Turn on or off 120Ω resistance at any time for CANBUS ECU.
- Support 6&14 and 3&11 CANBUS communication at the same time.
- Support GM Single CAN(GM SCAN).
- Support K communication.
- DB15 connector can communicate with any OBDII-16 I/O interface.
- This adapter can be used as a diagnostic platform in conjunction with third-party devices to perform ECU diagnostics or remote operations.
Specifications
- Interface: D-SUB
- Operating Voltage: 9V to 16V
- Operating Current: 32mA
- Working Temperature: 0-62°C
- Dimensions: 48x25x23mm
- Package Weight:200g
Set includes
- 1x P004 Adapter
- 1x P004 Jumper
| Connectivity |
| Connection Method |
Direct Plug/bench test wires |
| Information |
| Condition |
New |
| User Manual |
No |
| Warranty |
12 Months |
| Material |
| Durability |
Impact Resistant |
| Grip Type |
Smooth |
| Material Type |
ABS Plastic |
| Vehicle Support |
| Region Compatibility |
EU,US,UK,Asia |
| Vehicle Types |
Passenger Cars |
