KeyMaster G3

CAR | HD | E-CAR | MOTO | MARINE

Three colours available
GREEN - BLACK - ORANGE
(the same functionality)

OBDSTAR KeyMaster G3 Diagnostic tool

KeyMaster G3 is the new generation intelligent tool of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, Motorcycle, Marine (jet-ski), etc. A good helper for locksmith master.

Supported vehicle types

• Car
• HD
• E-Car
• MOTO
• Marine (jet-ski)

Software functions

• Supports: Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

Hardware Advantages

• Built in CAN-FD, Low Speed (Fault Tolerant) CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID.
• Cortex-A55 2.0GHz, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.

Advanced Functions

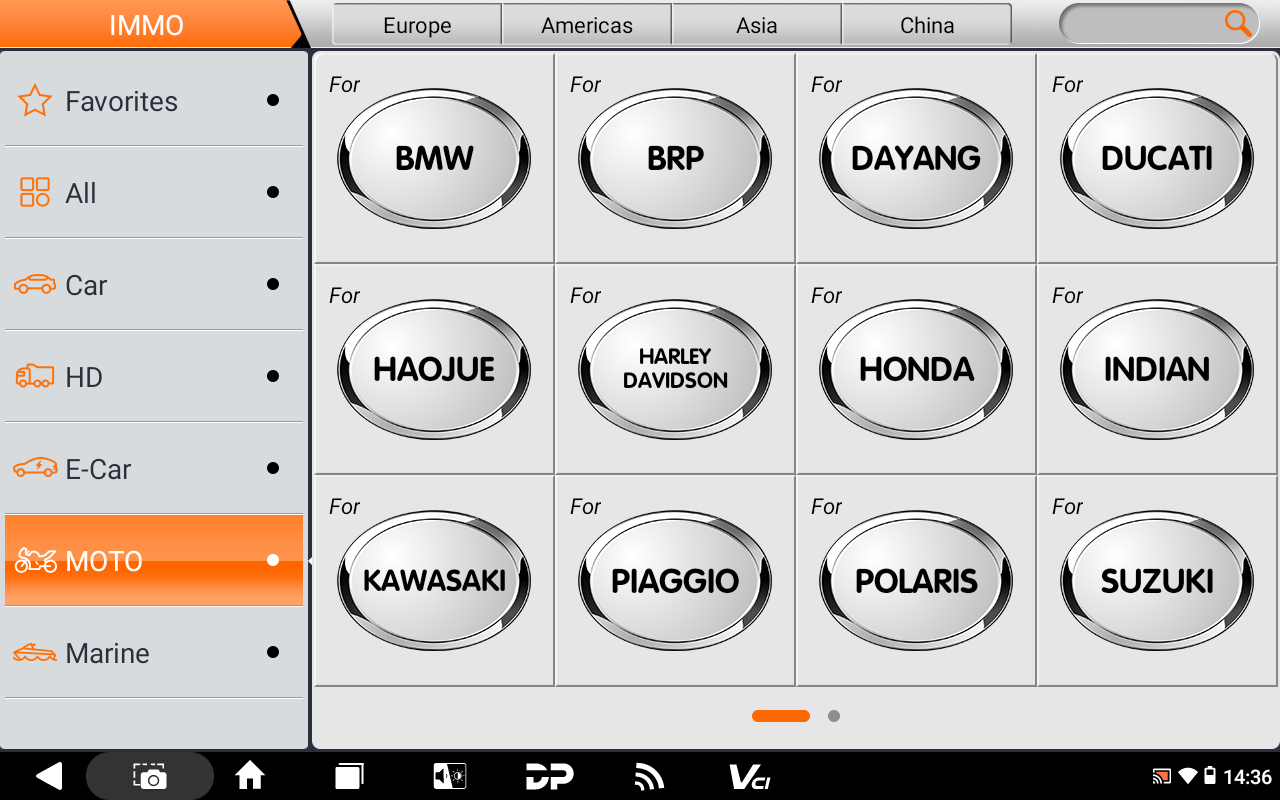

• Supports: MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
• Supports: Marine key programming function for BRP, KAWASAKI, YAMAHA and others;
• Supports: E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;

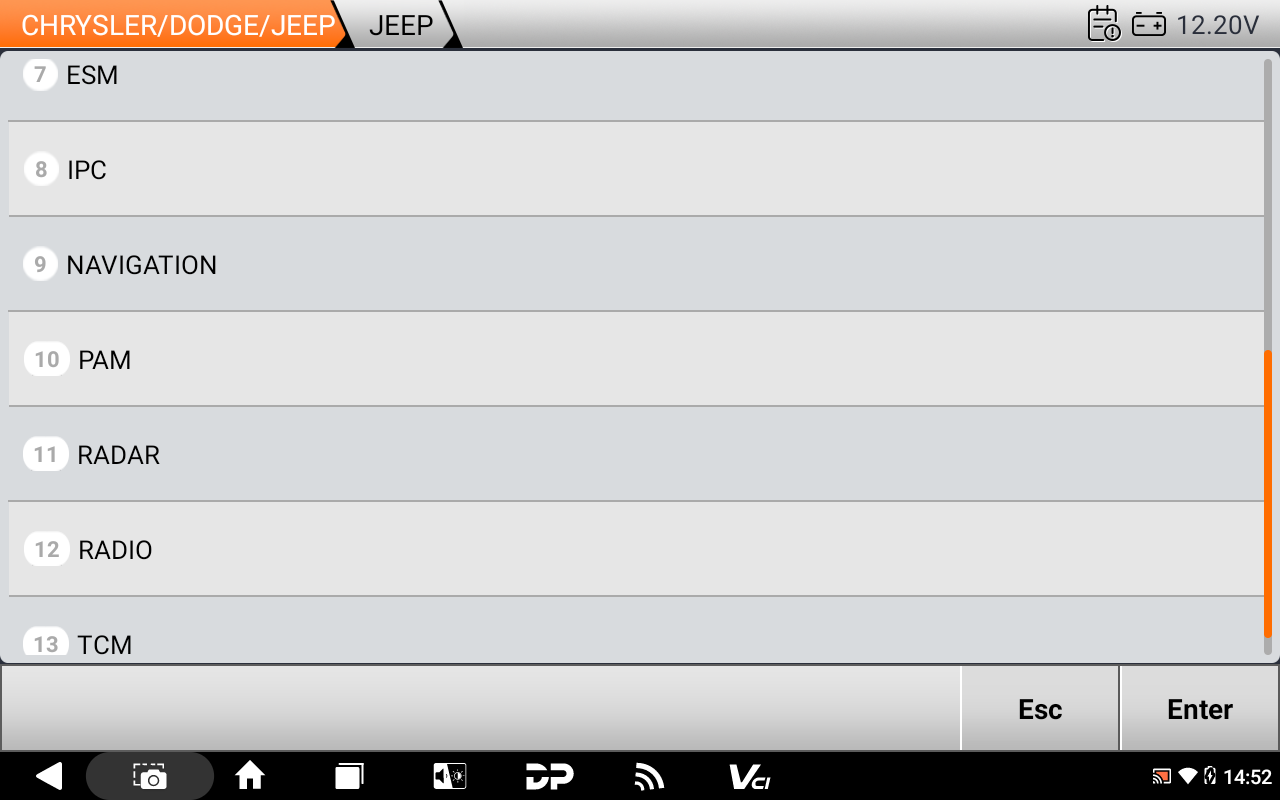

• Supports: unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others.
• Supports: programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
• Supports: programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3.
• Supports: pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
• Paid software activation service for ODO METER, ECU Flasher, Crash Reset, Test Platform and the other functions are available.

Function Module list - Standard

A: IMMO

• A1.1: CAR IMMO
• A1.2: HD IMMO
• A1.3: E-CAR IMMO
• A1.4: MOTO IMMO
• A1.5: MARINE IMMO
• A2.1: Remote Test
• A3.1: ECU Advanced
• A4.1: Make Key

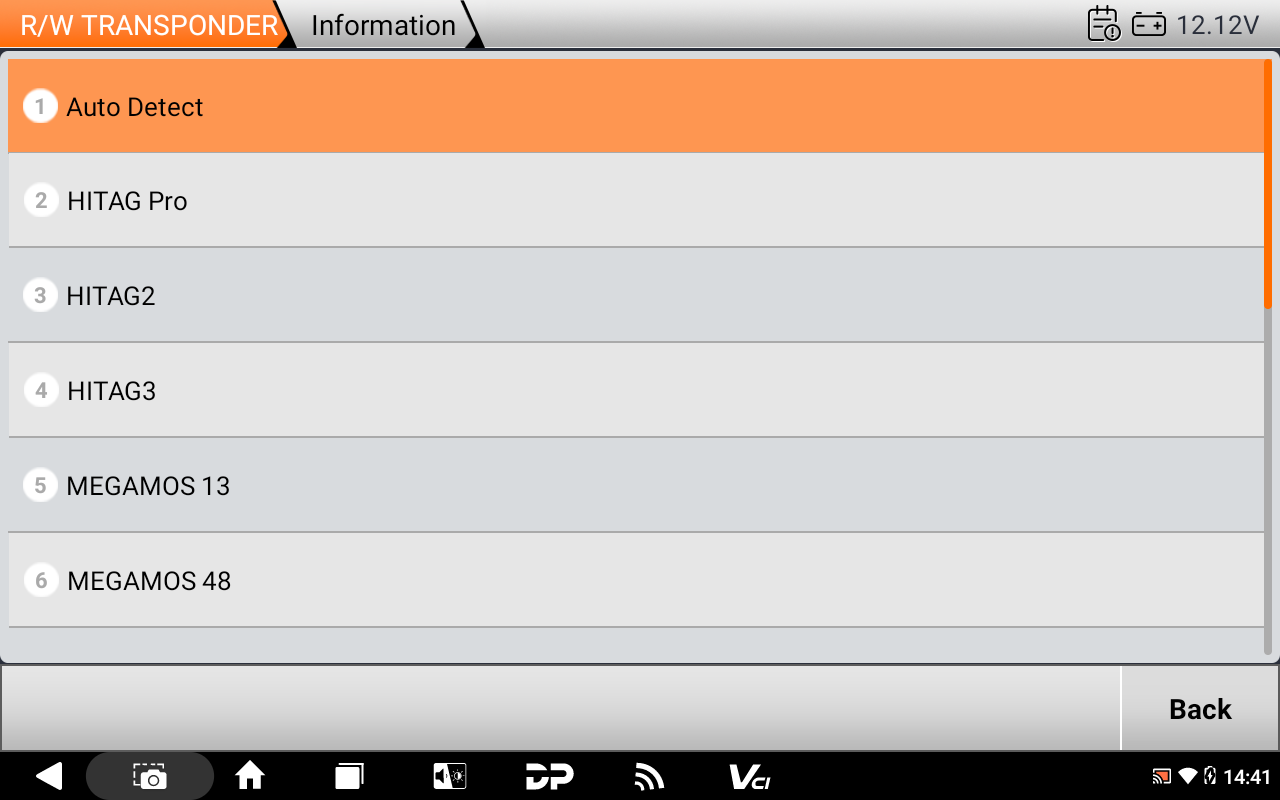

• A4.2: R/W Transponder
• A4.3: Unlock Smart Key
• A5.1: EEPROM/MCU
• A5.2: Renew Key

Function Module list - Full

A: IMMO

• A1.1: CAR IMMO
• A1.2: HD IMMO
• A1.3: E-CAR IMMO
• A1.4: MOTO IMMO
• A1.5: MARINE IMMO
• A2.1: Remote Test
• A3.1: ECU Advanced
• A4.1: Make Key
• A4.2: R/W Transponder
• A4.3: Unlock Smart Key
• A5.1: EEPROM/MCU
• A5.2: Renew Key

B: ODO METER

• B1.1: CAR ODO METER
• B1.2: MOTO ODO METER
• B2.1: Oil/Service Reset

C: ECU Flasher

• C1.1: CAR ECM
• C1.2 :CAR TCM
• C1.3: CAR BODY
• C2.1: MOTO ECM

D: Crash Reset

• D1.1: Battery Reset (MVBM)
• D1.2: Airbag Reset
• D1.3: SAS Reset

E: Test Platform

• E1.1: Dash Board
• E1.2: E-CAR ABS
• E1.3: Gear Lever
• E1.4: A/C Panel
• E1.5: E-CAR BSG
• E1.6: E-CAR MHEV
• E1.7: E-CAR AUDIO
• E1.8: E-CAR EBA

License

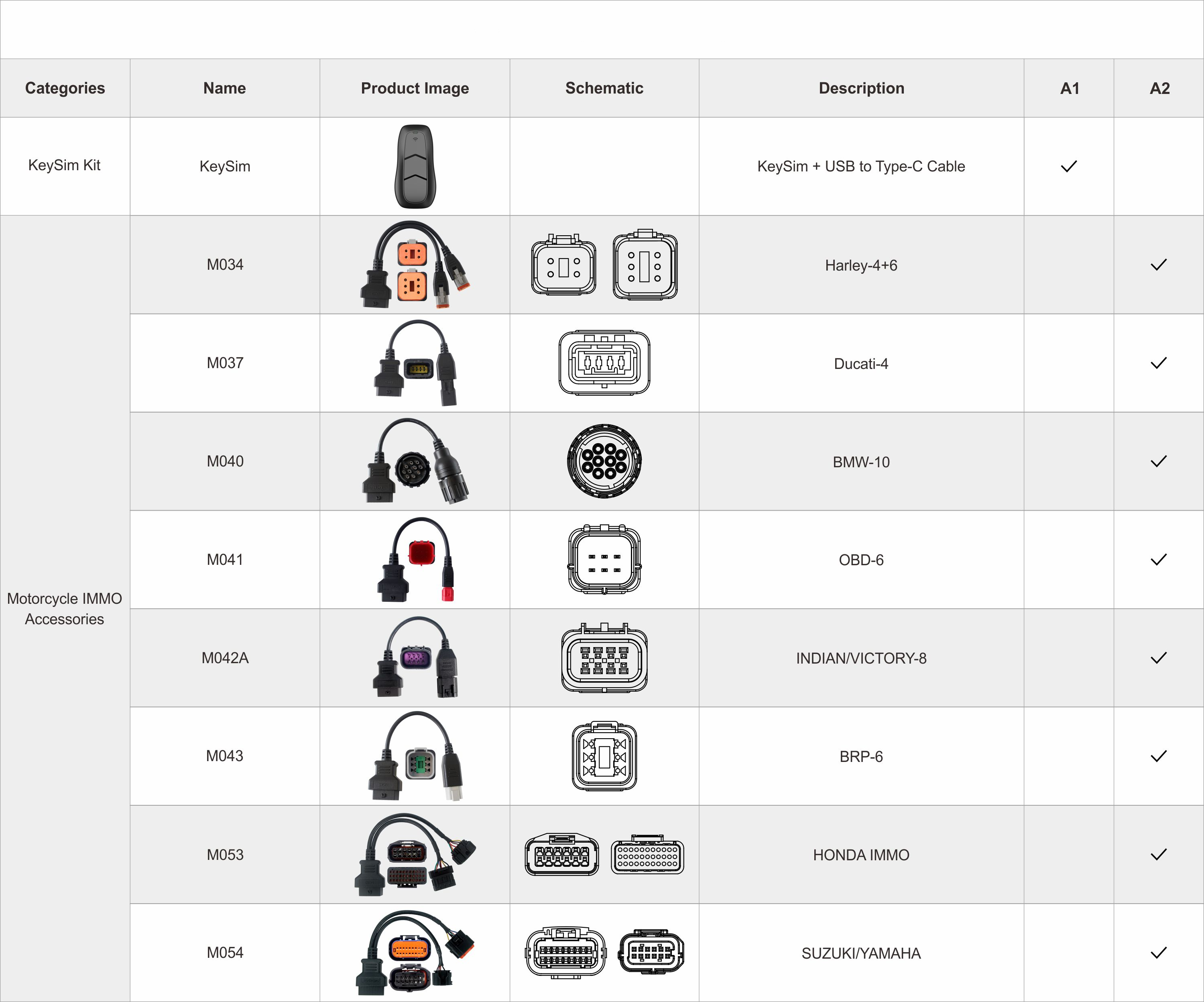

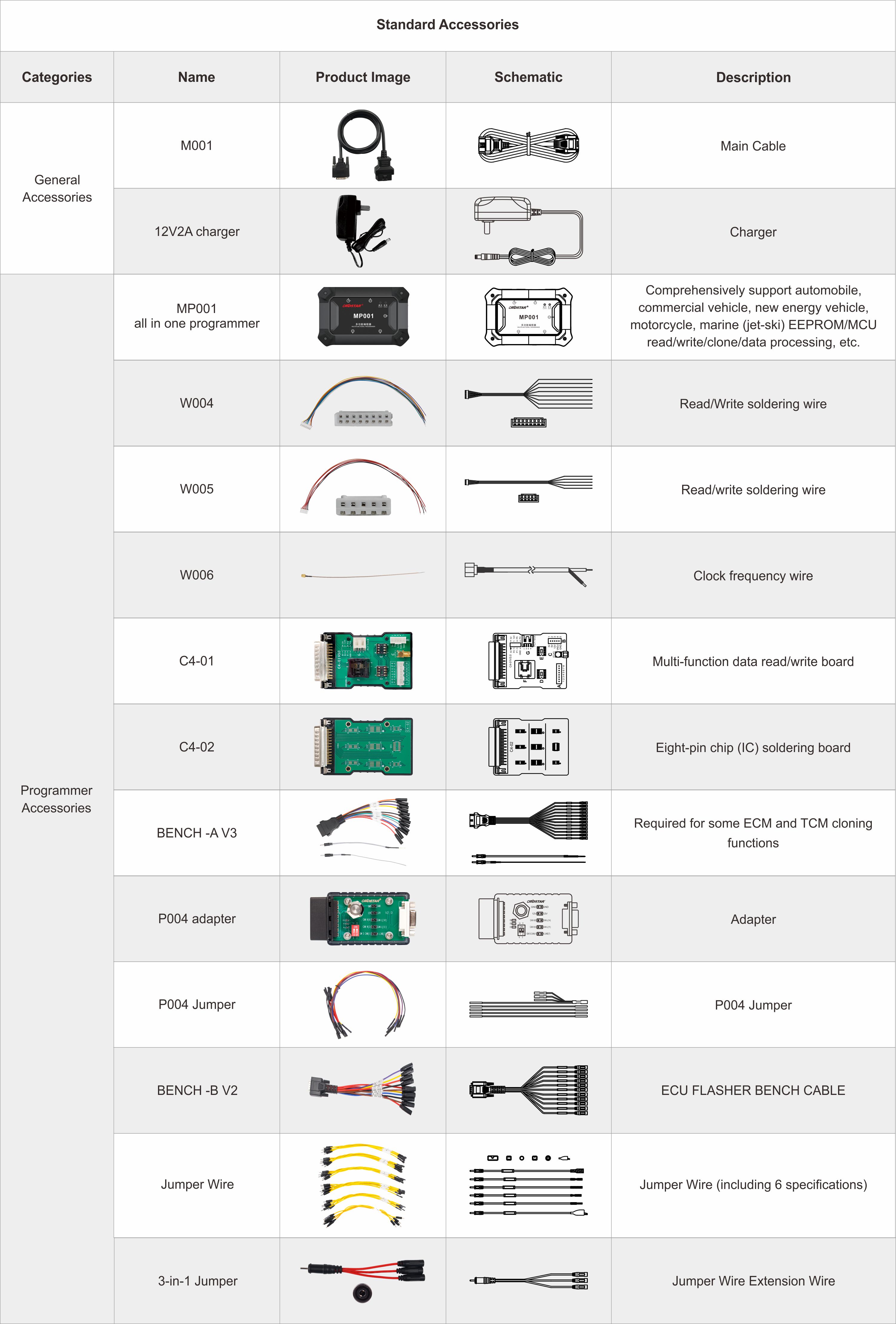

Accessories

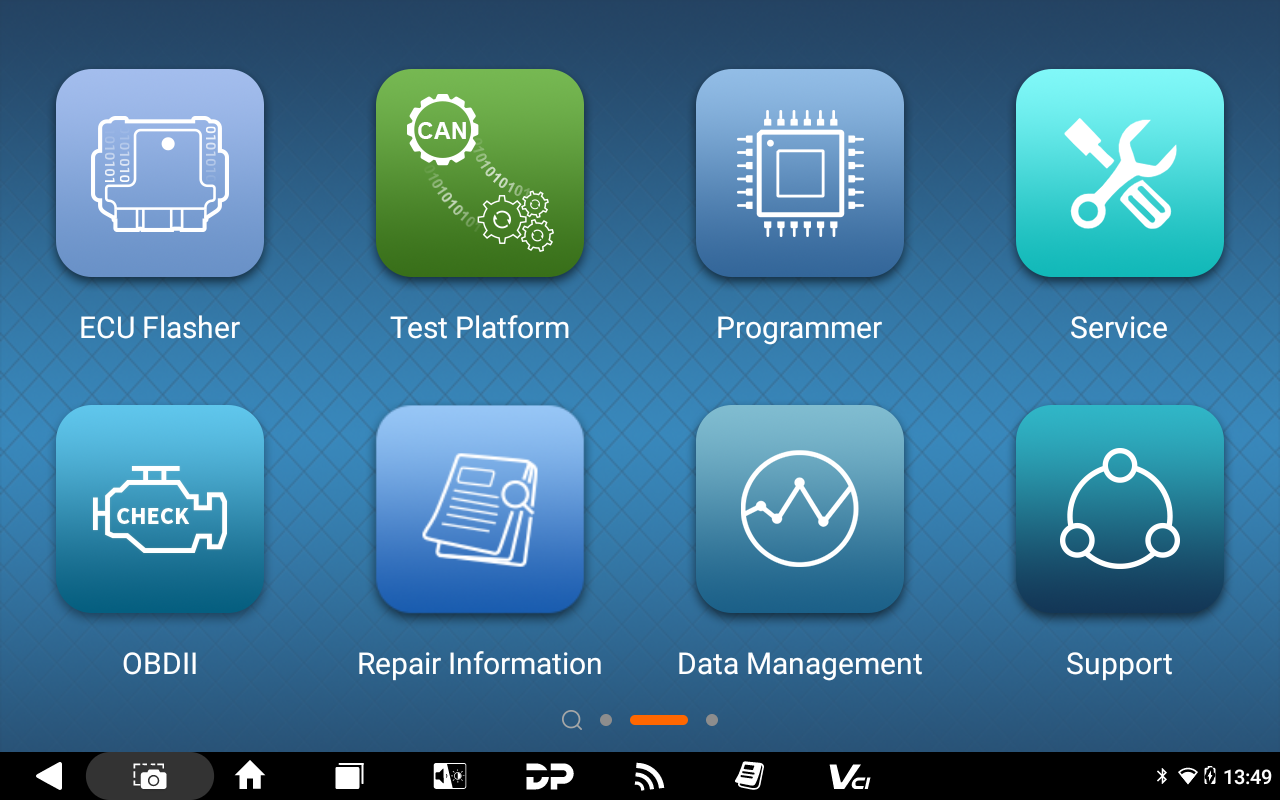

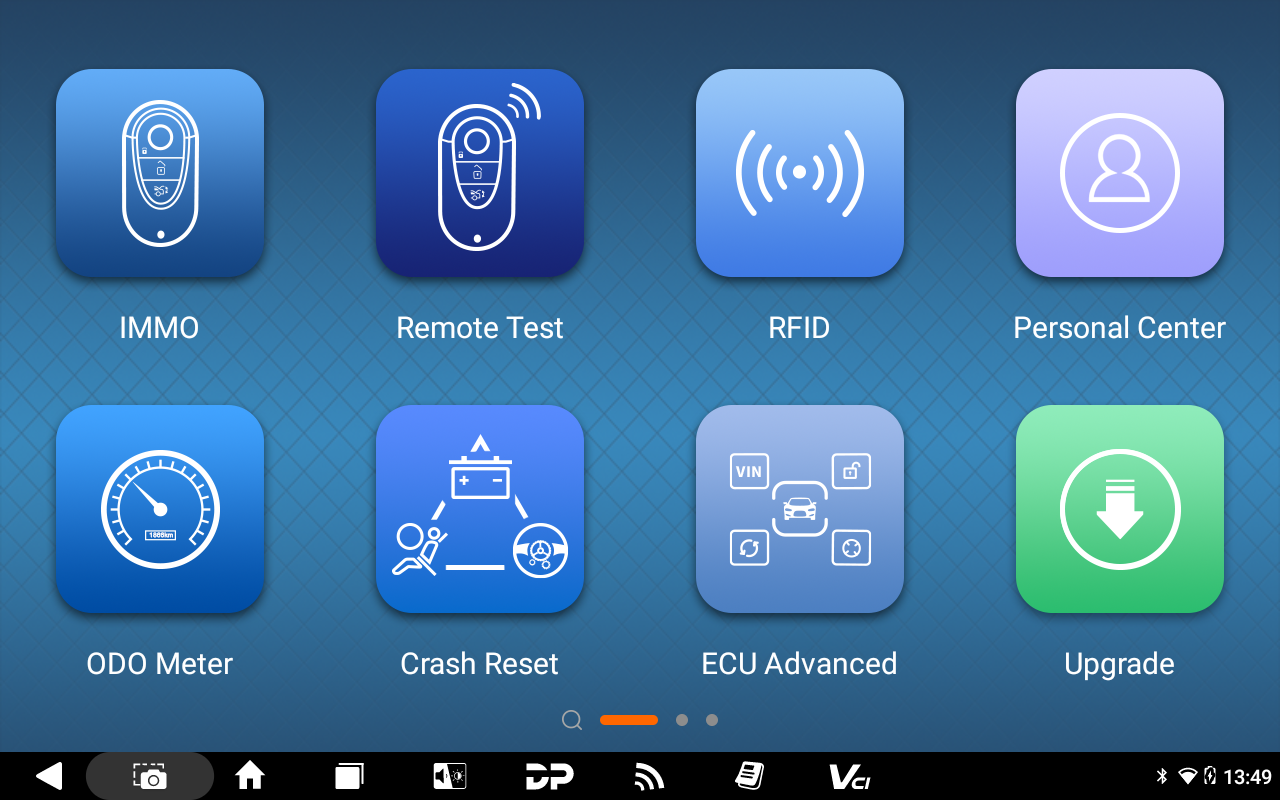

Function Display

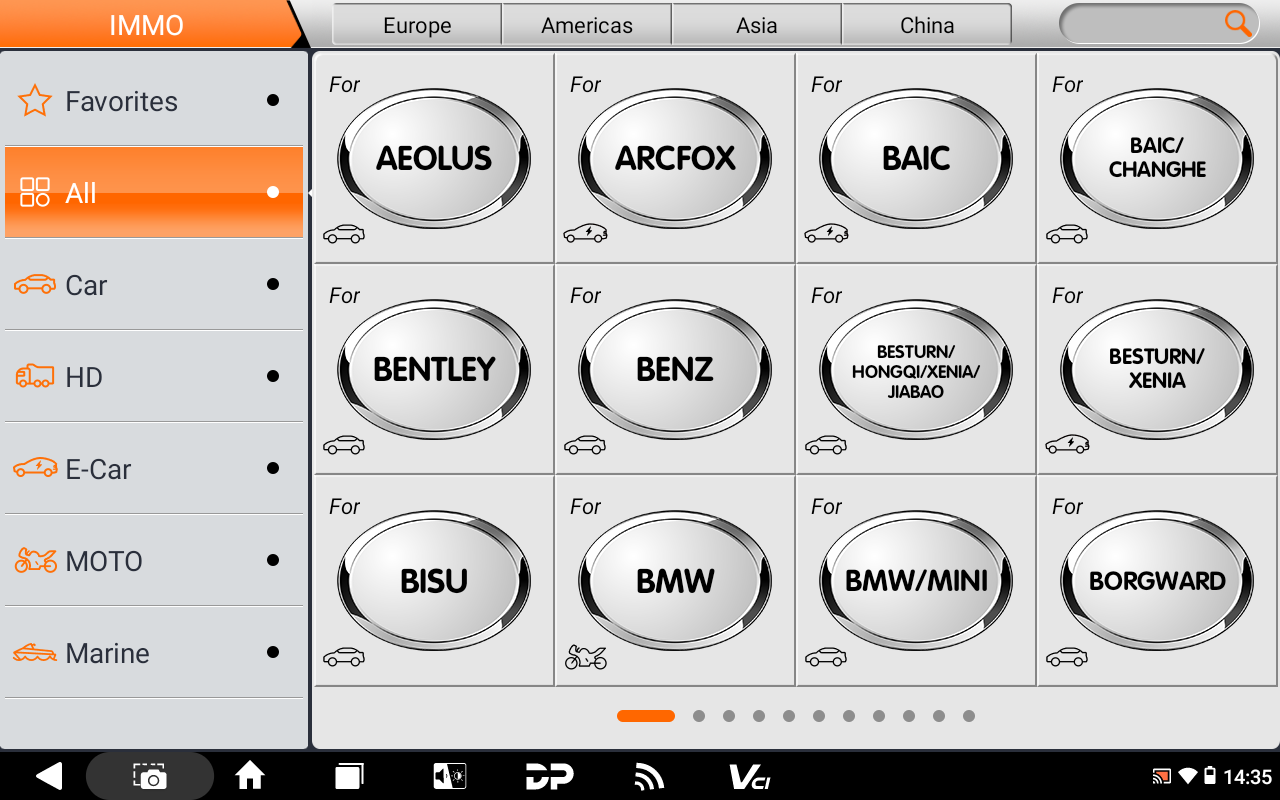

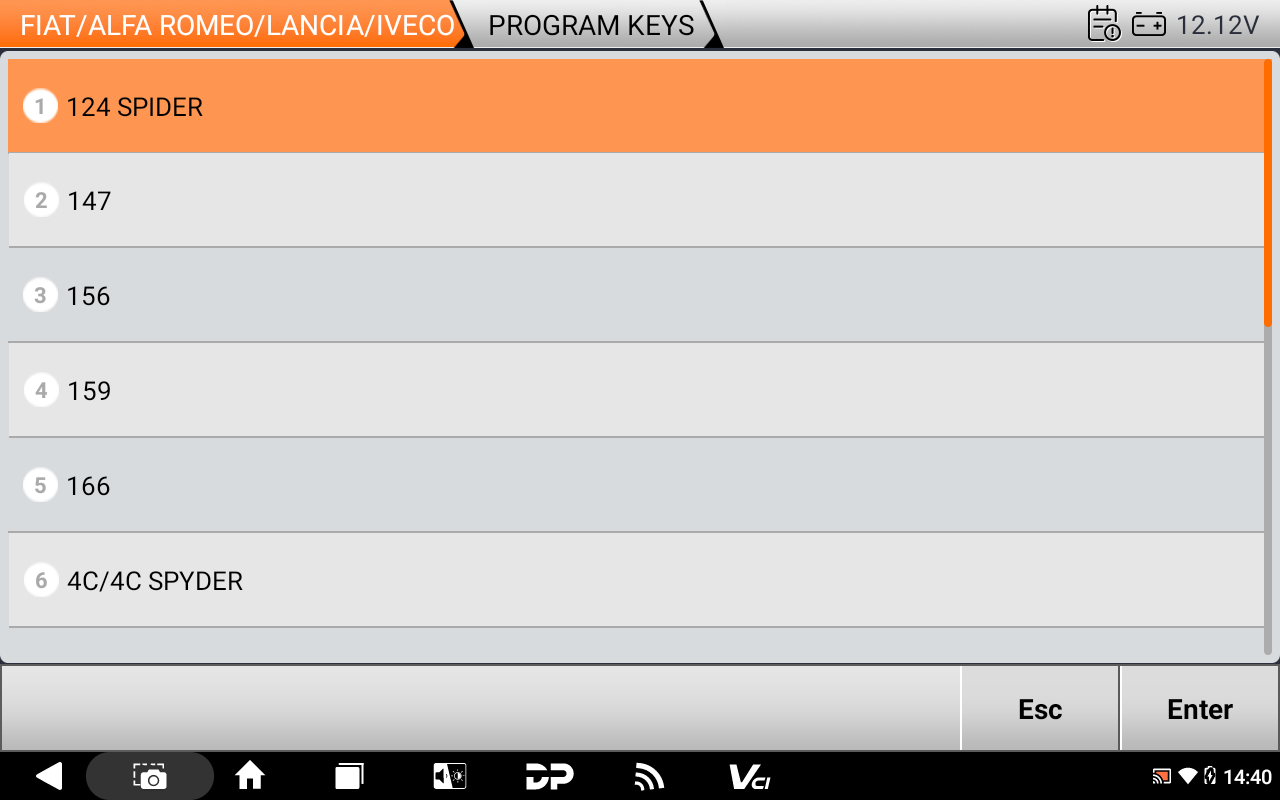

IMMO

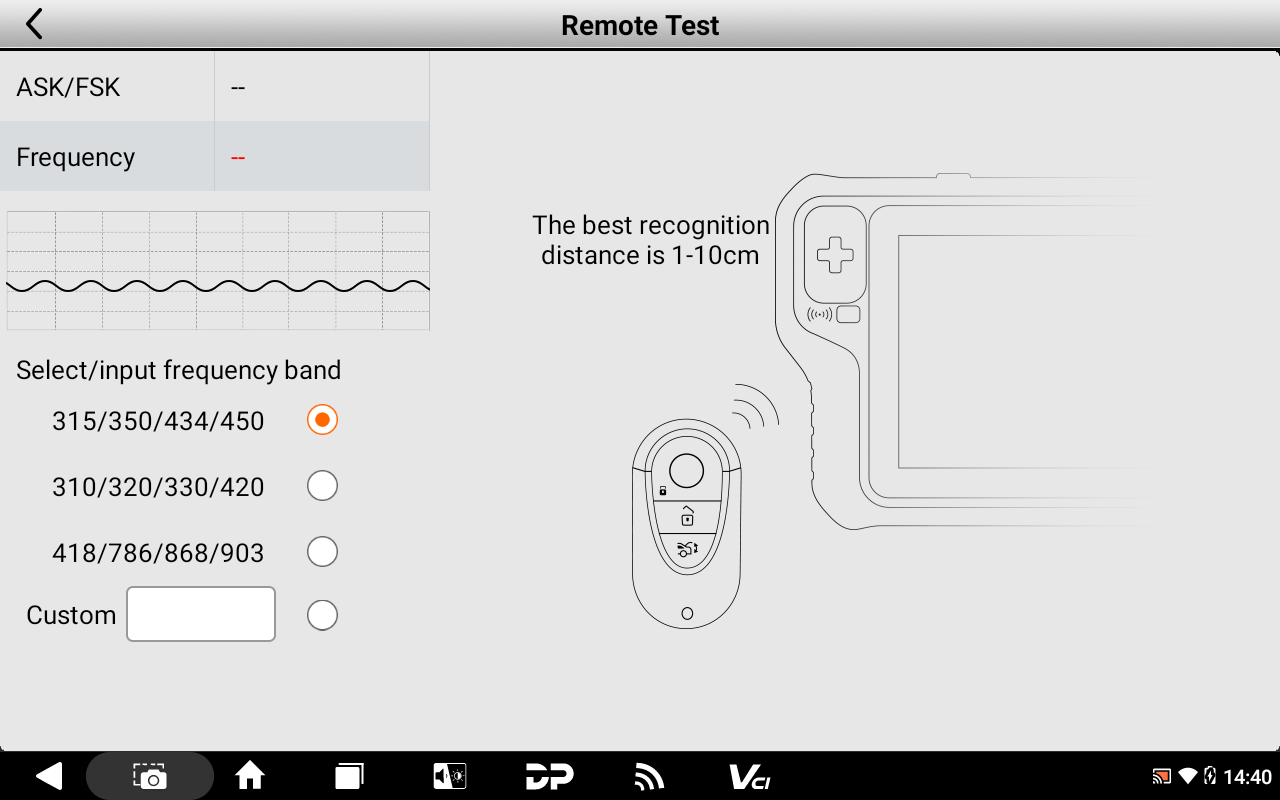

Remote Test

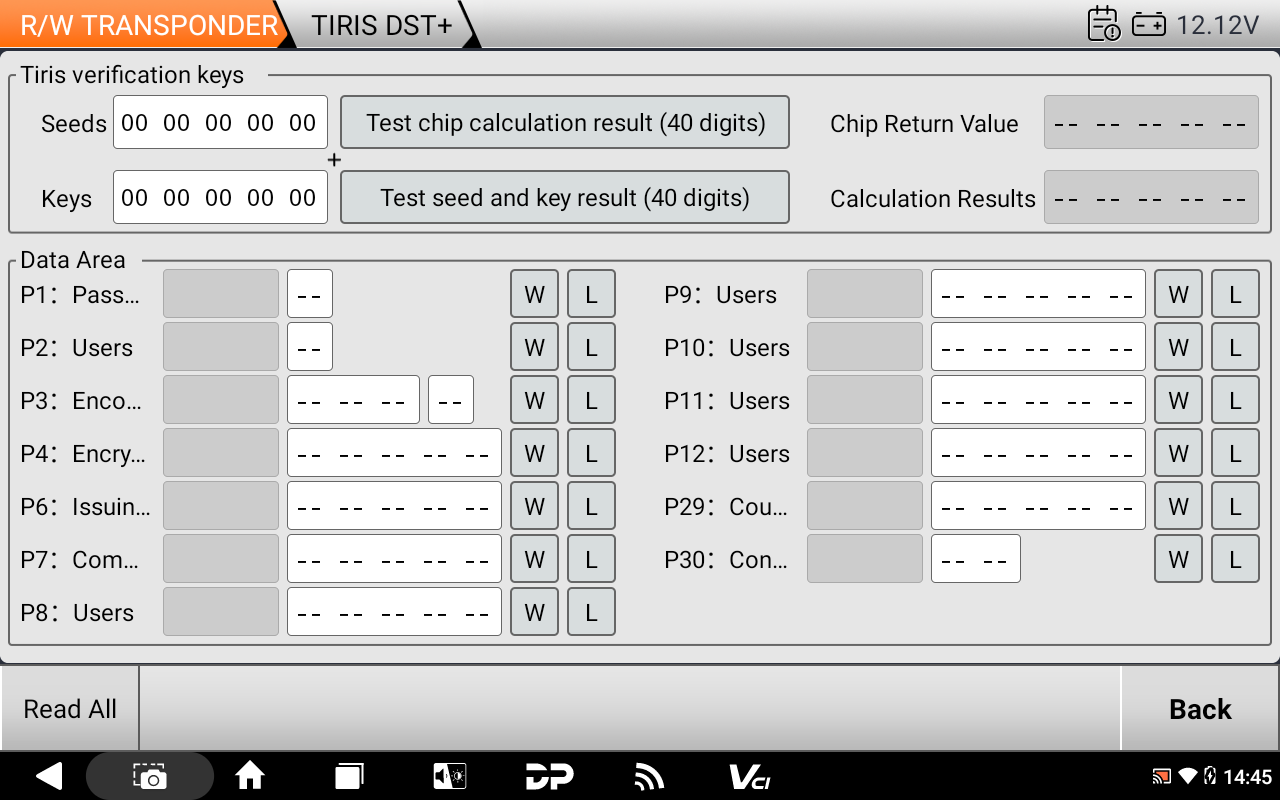

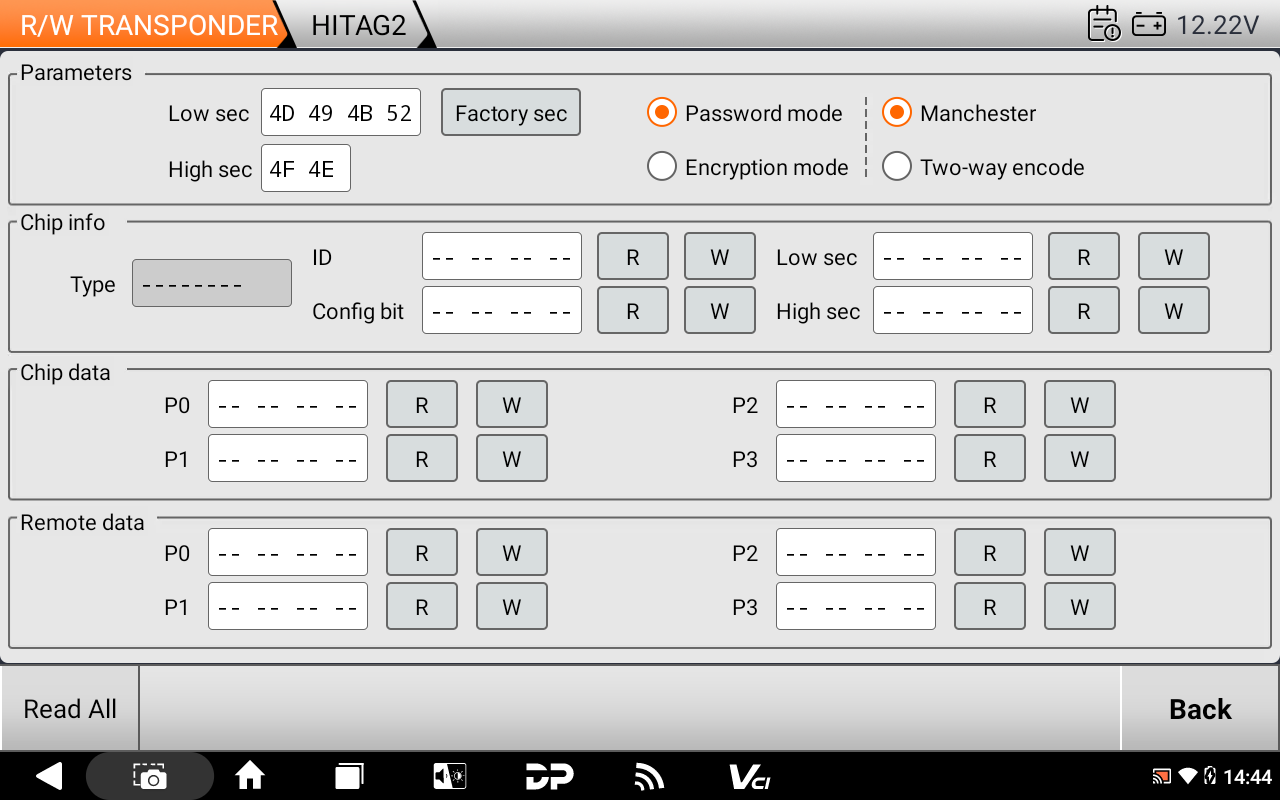

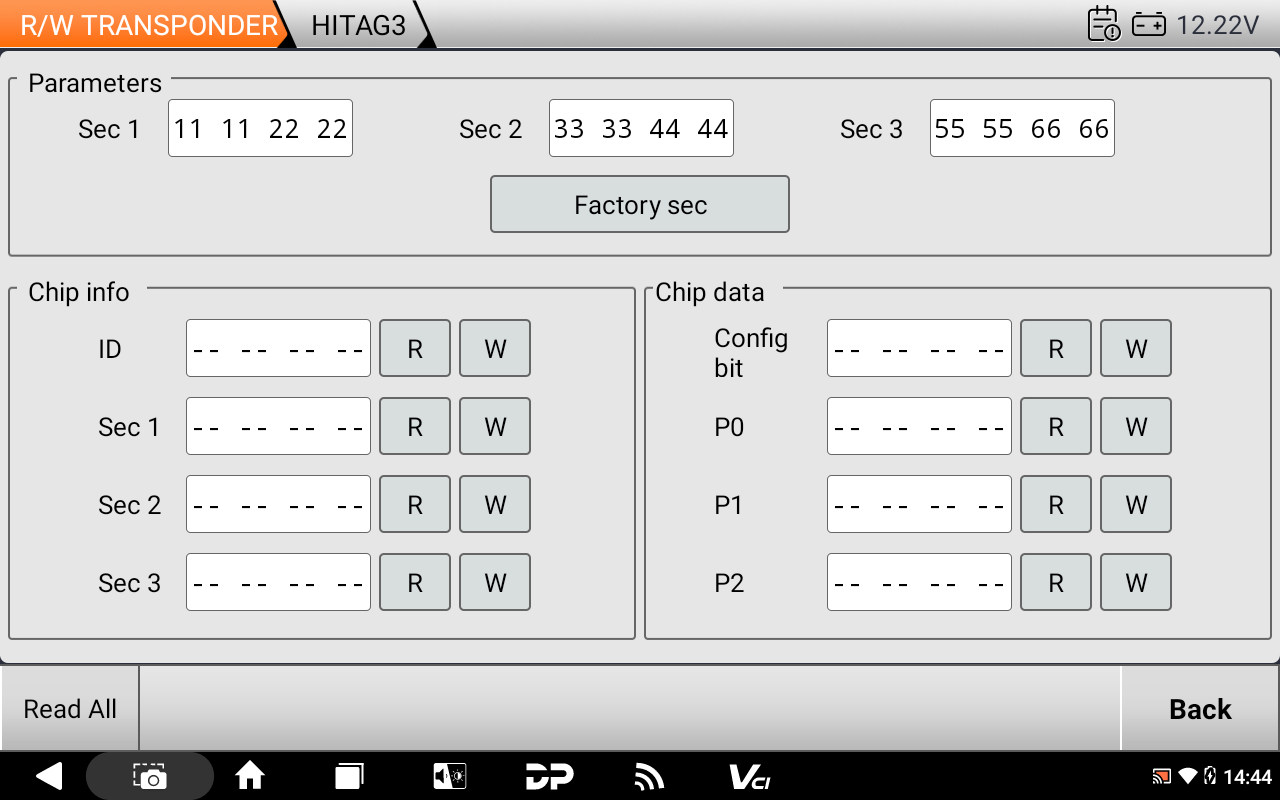

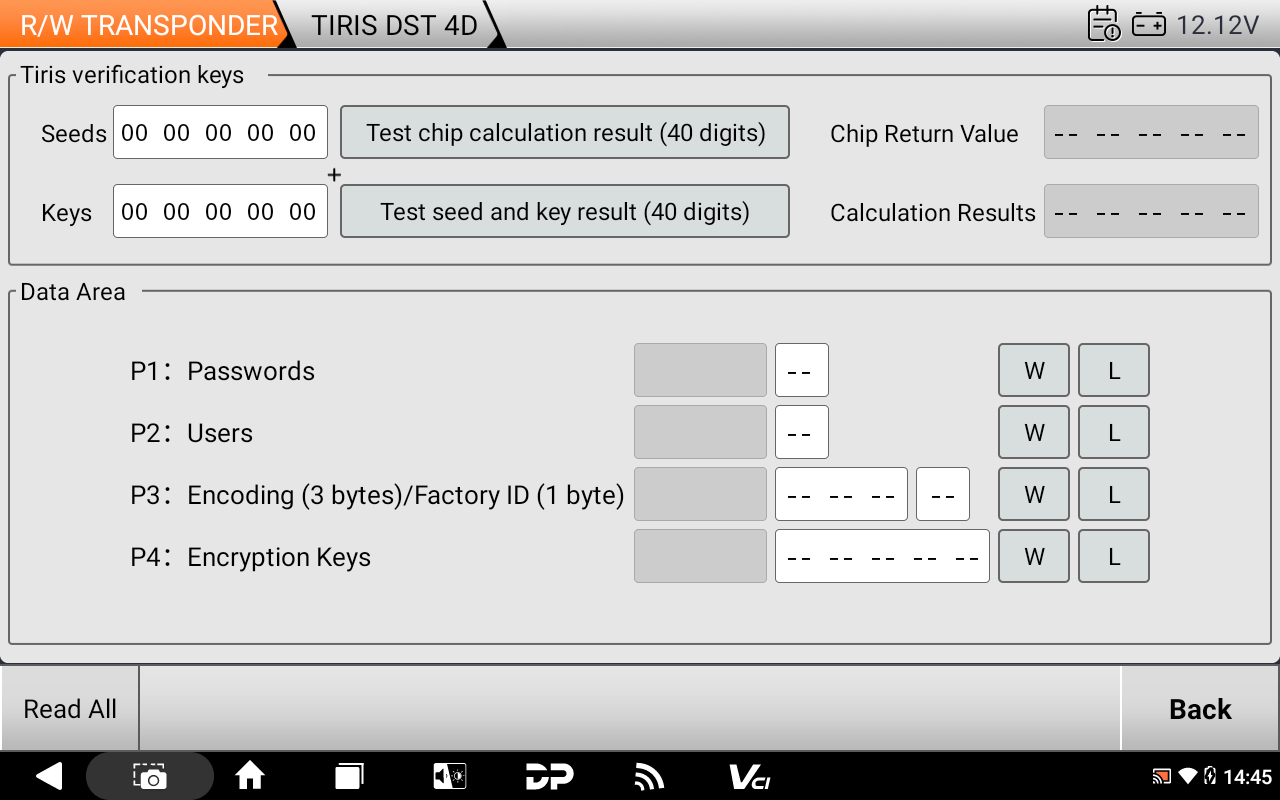

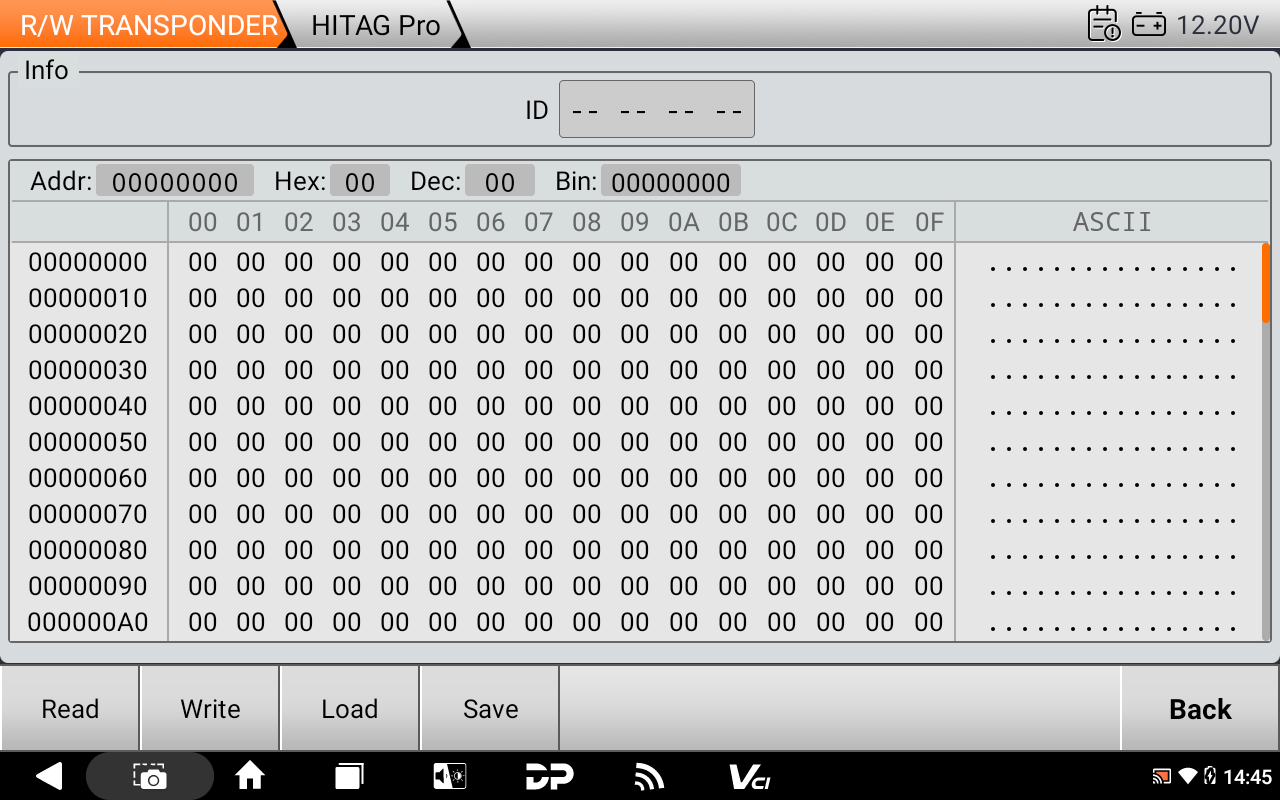

RFID

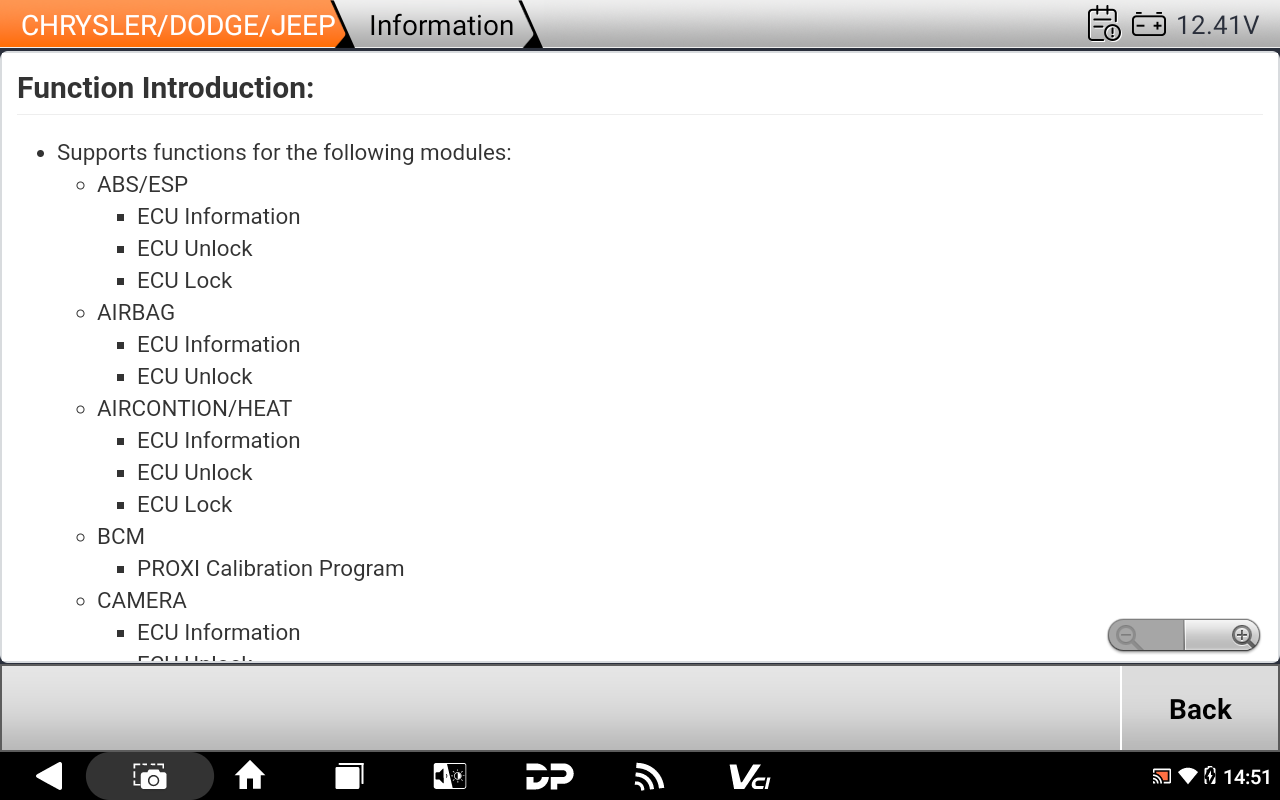

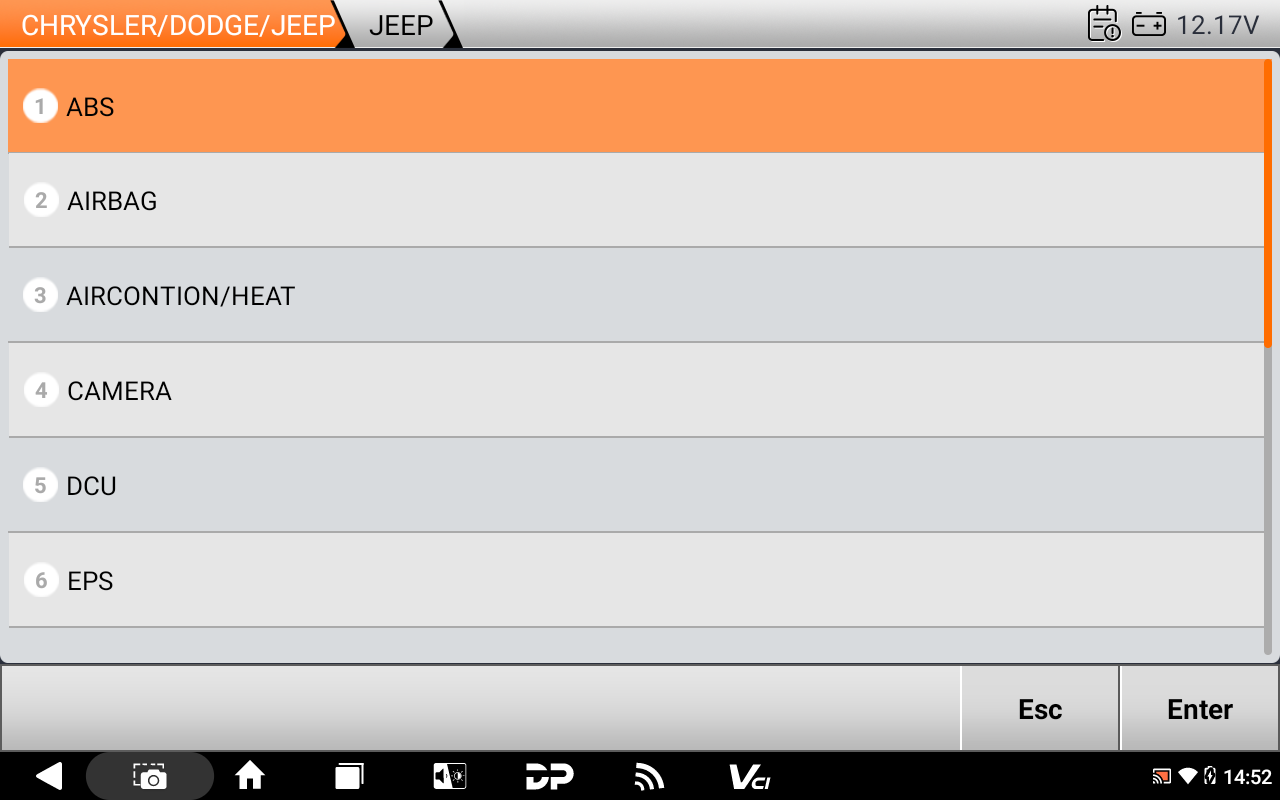

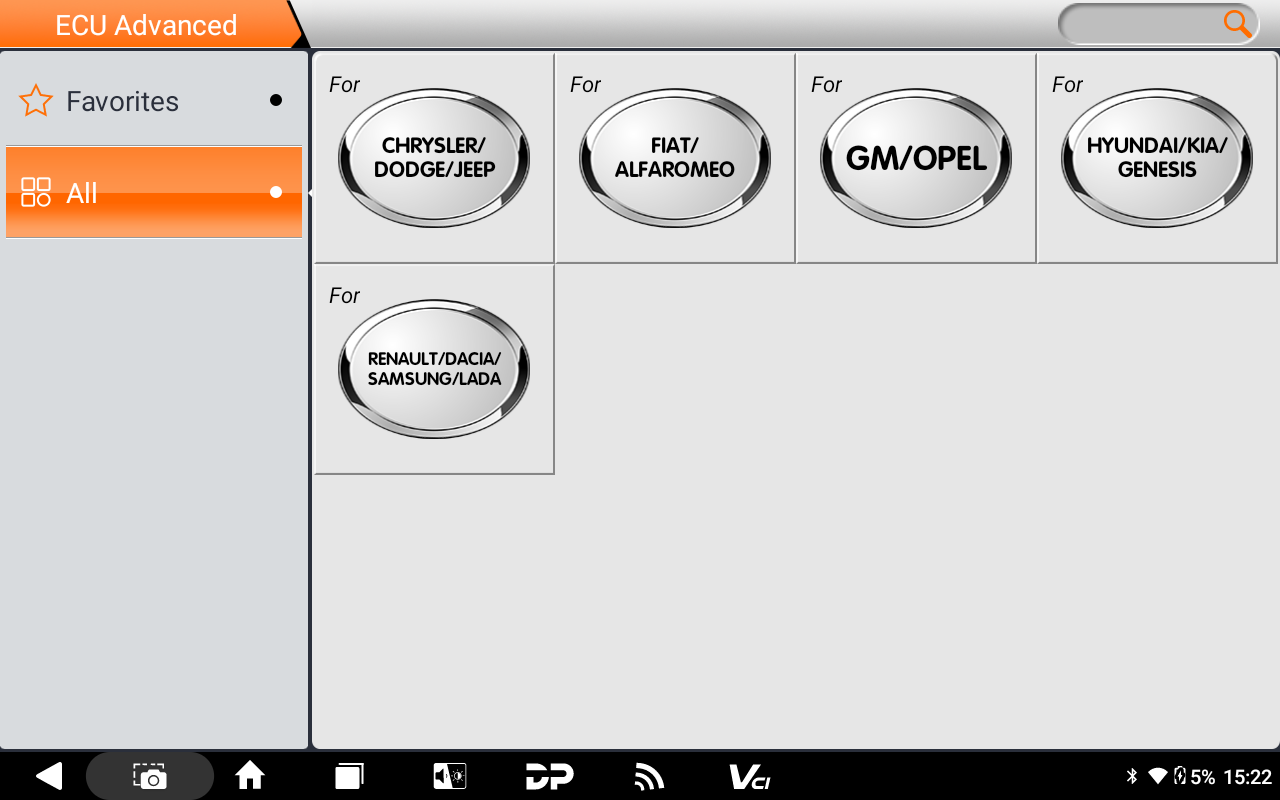

ECU Advanced

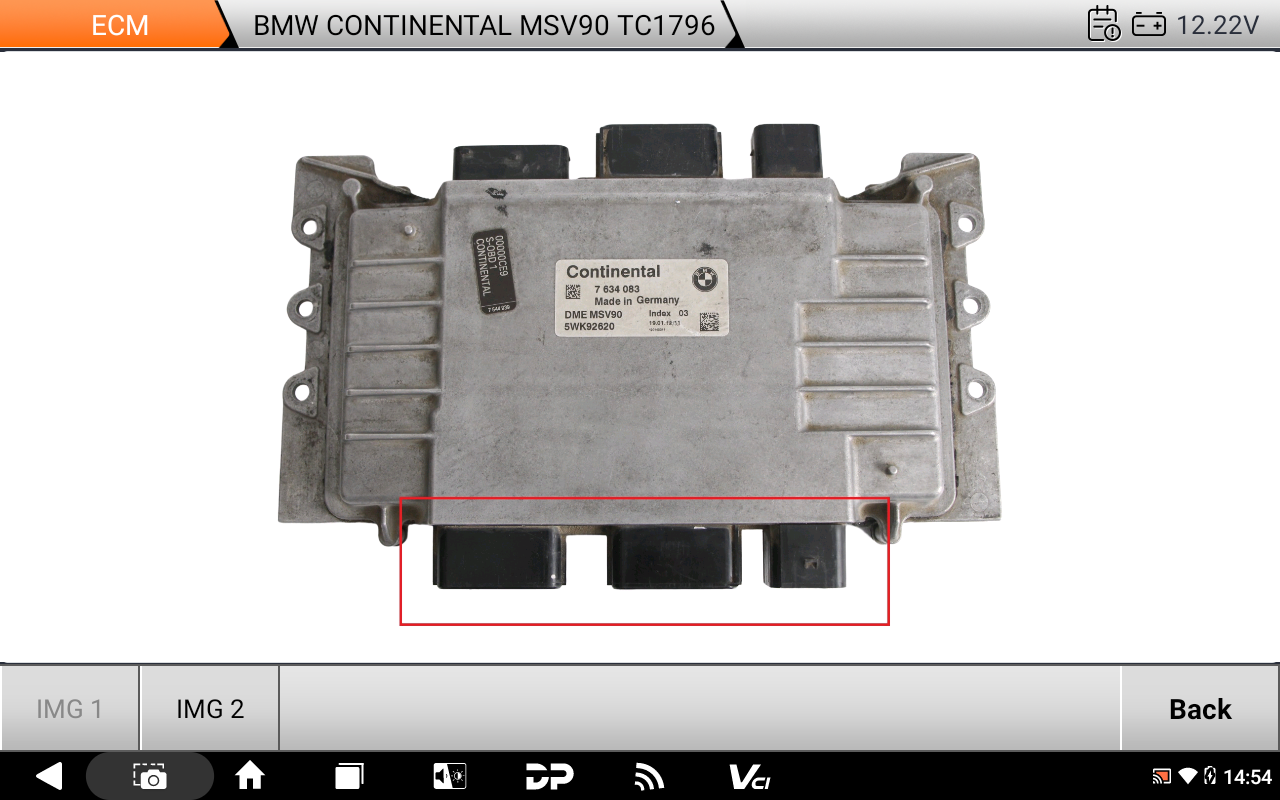

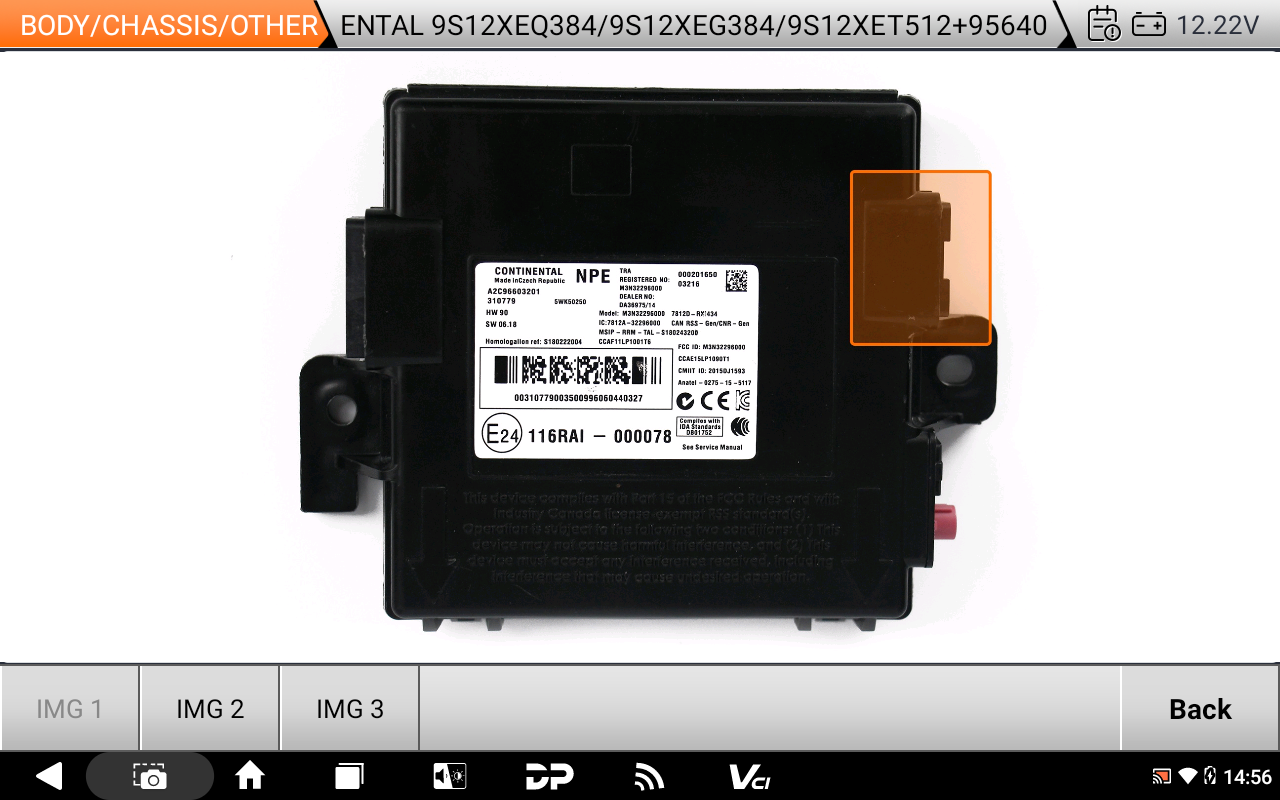

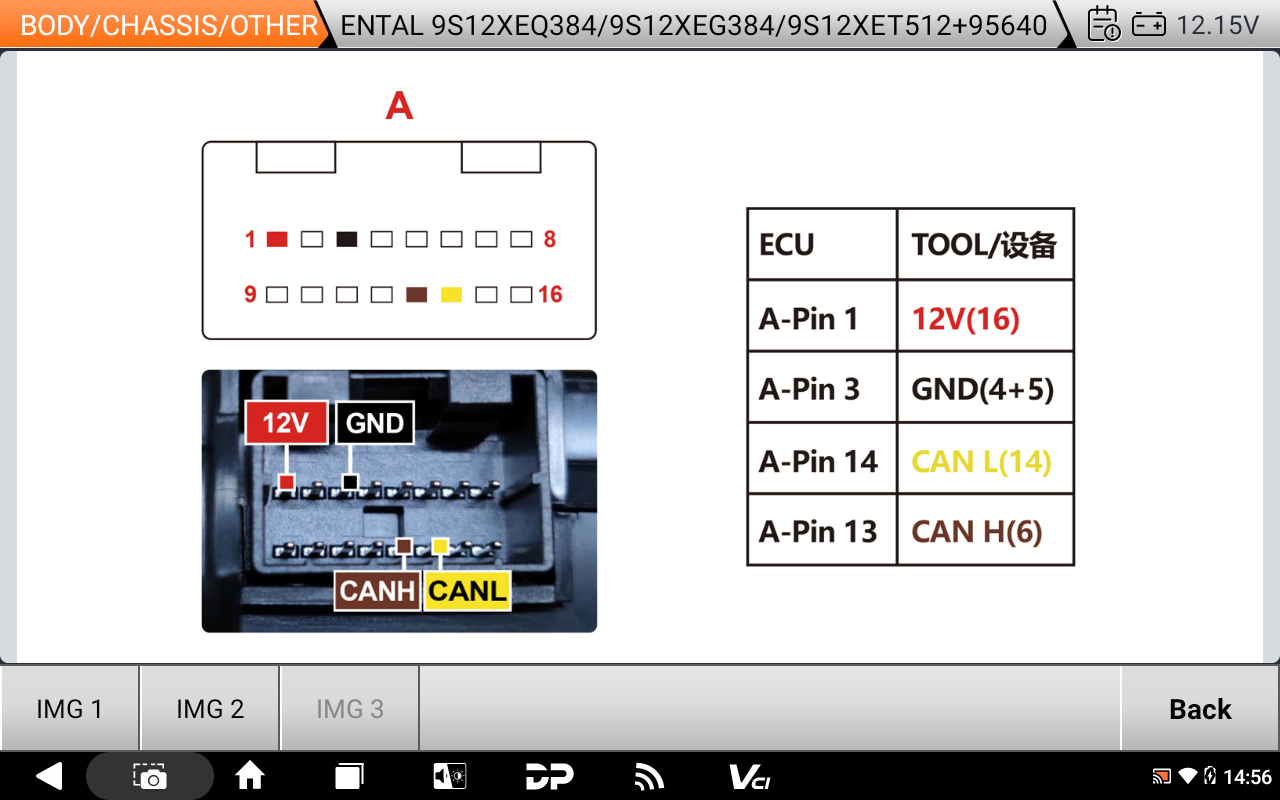

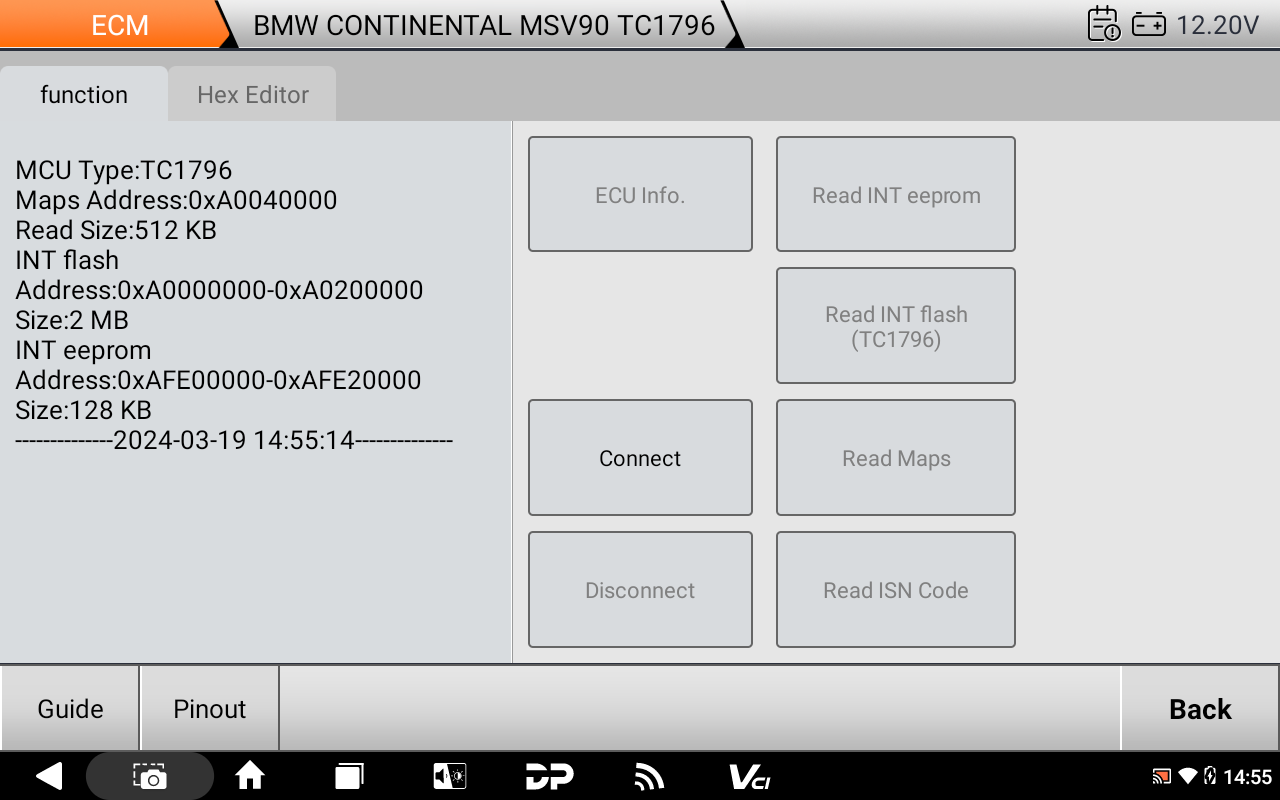

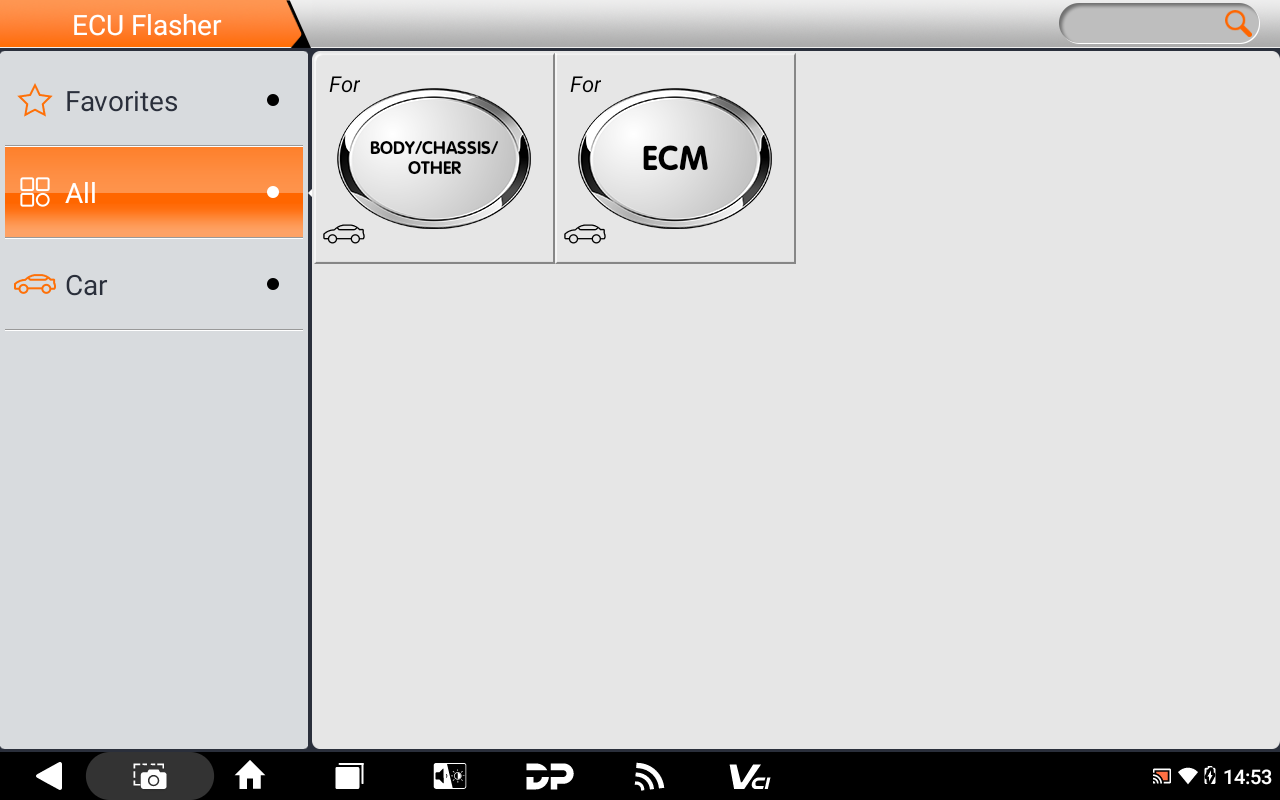

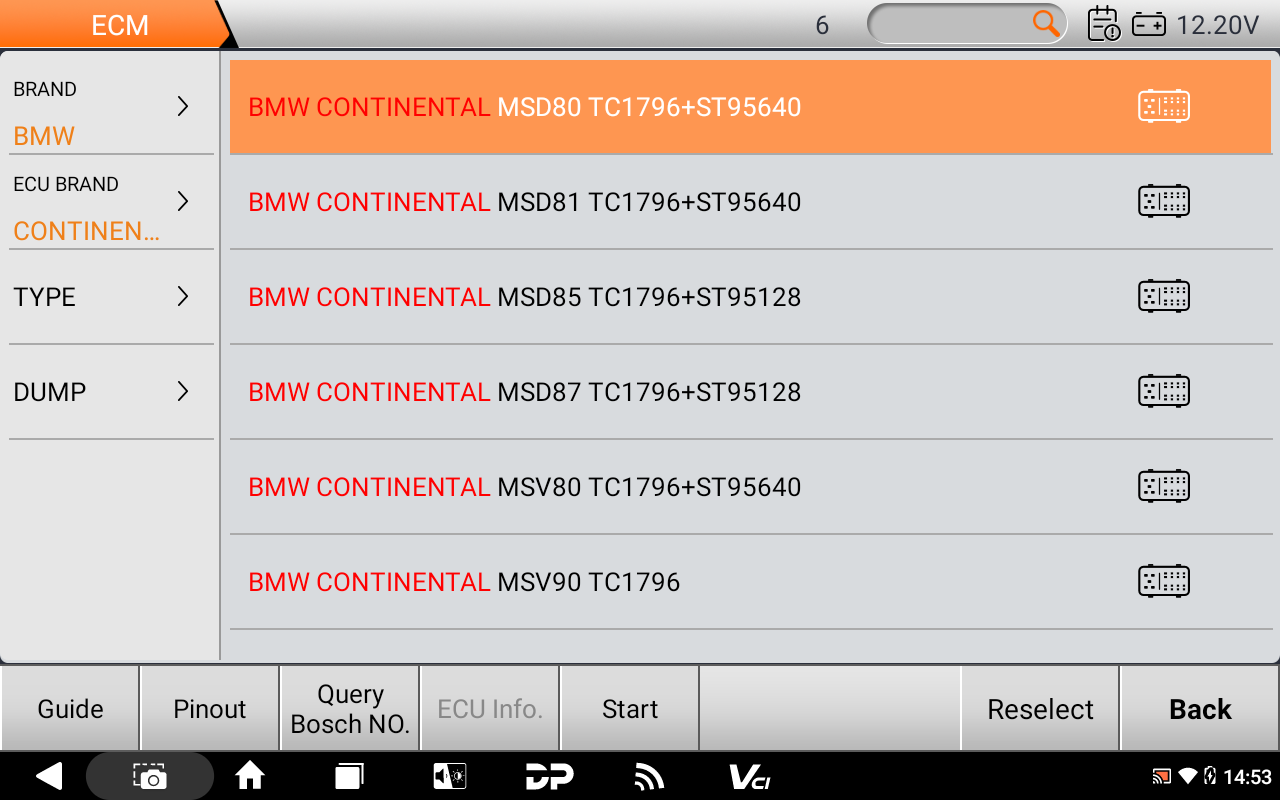

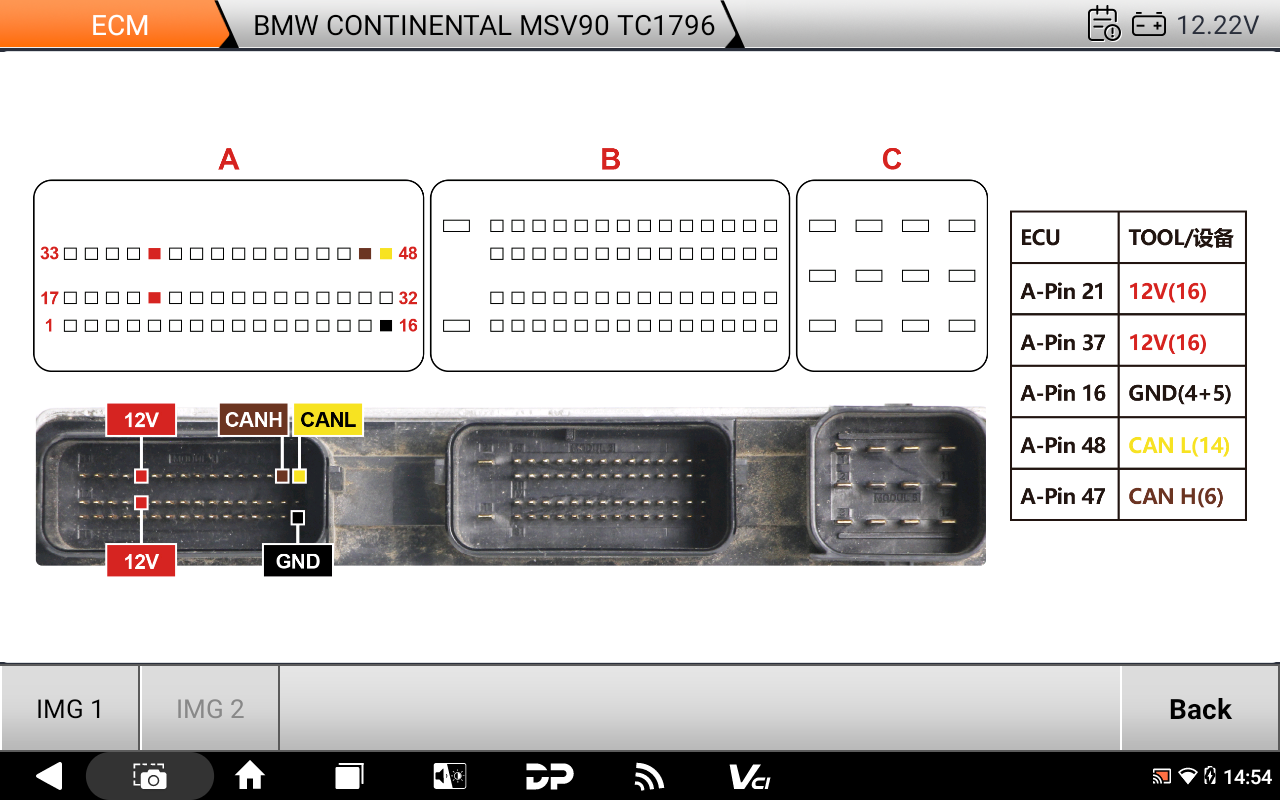

ECU Flasher
