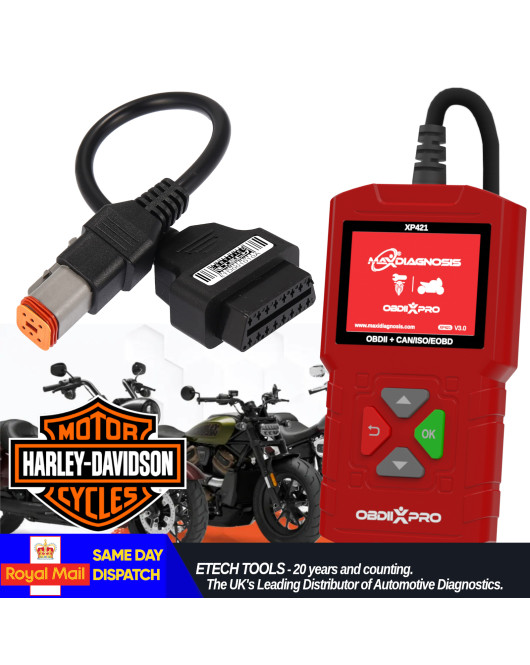

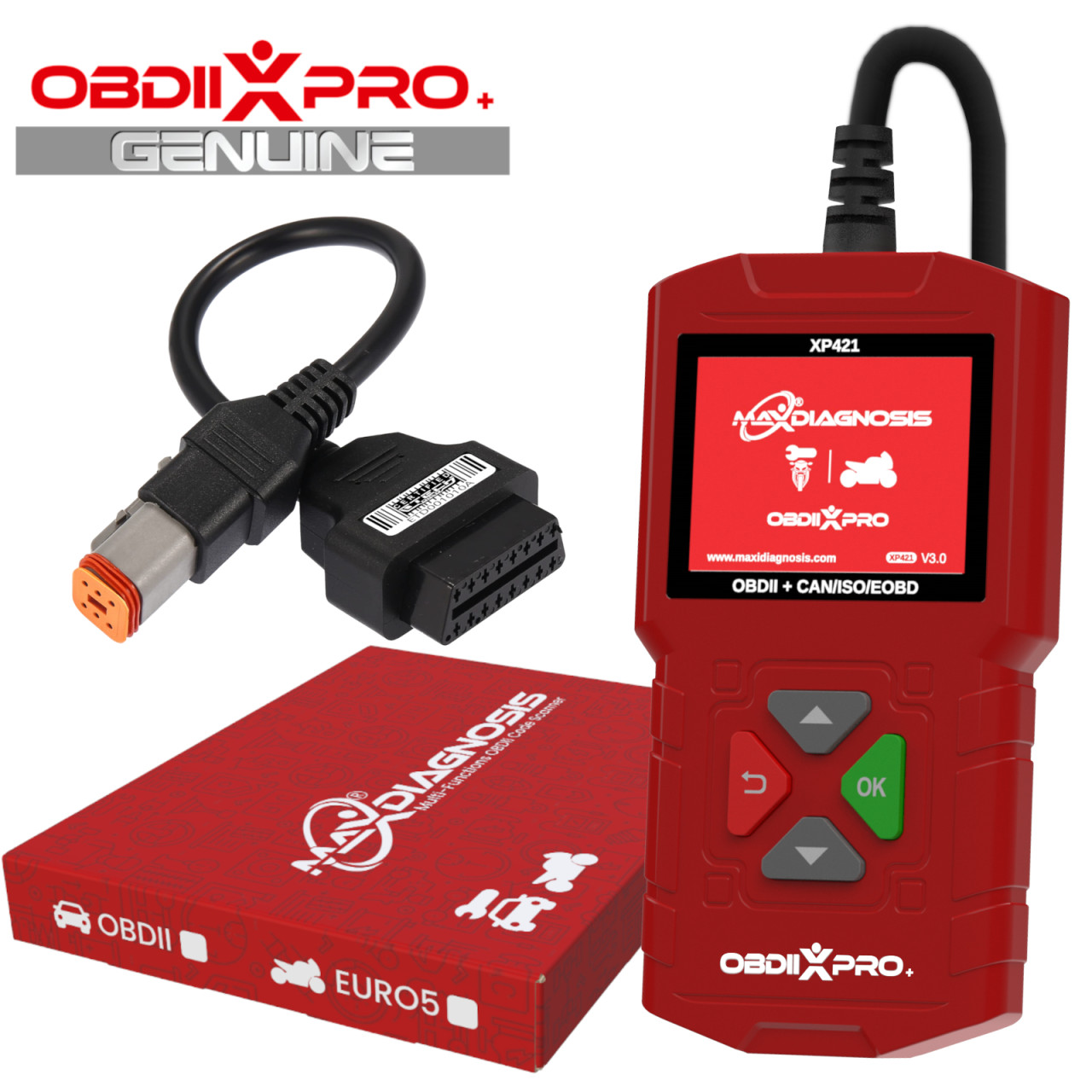

Engine Doctor For Harley Davidson Motorcycles

XP421-HD6

Features

  • ✅ Engine Diagnostic works on Cars, Vans and Motorbikes.
  • ✅ Multi-Language support (English, Spanish, French, German, Italian, Dutch, Polish, Chinese etc.)
  • ✅ Quickly indicate engine faults with.
  • Support all OBDII vehicles (UK, European, US and Asian)
  • ✅ Turns off Check Engine Light (MIL), clears codes.
  • Vehicle Battery Test
  • ✅ Displays DTC definitions on unit screen.
  • ✅ Self Test screen & keyboard
  • ✅ Views freeze frame data.
  • ✅ Displays monitor and I/M readiness status(emissions)
  • ✅ Identifies pending codes.
  • ✅ Retrieves vehicle information (VIN, CIN and CVN)
  • ✅ Supports CAN (Controller Area Network) and all other current OBD-II protocols.
  • ✅ Small in size and conveniently fits in your palm.

Plug and Play handheld OBD2 Scanner with multiple functions that enable DIY users to solve basic engine problems. Check the engine of all vehicles that comply with OBDII, 12V voltage with standardised 16-pin connector and use features like, code reading, code clearing, I/M Readiness, battery testing and much more.

Image Image

Battery State Test on Graph

  • Reads the real time voltage state of the battery and displays it on a graph.
  • Technicians suggest that battery testing before diagnosis can improve accuracy and display early warnings before diagnosis.

OBD II Protocols

  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)

Specifications

  • OBD Interface: OBDII, EOBD, Battery Check
  • Display: 2.4 inch
  • Operating Voltage: 6V to 16V
  • Operating Current: 53mA
  • Working Temperature: 0-62
  • Dimensions: 145x73x23mm
  • Package Weight: 300g

Set includes

  • 1x OBDIIXPRO XP421 Diagnostic Tool
  • 1x Harley Davidson 6 Pin cable
  • 1x Manual
Connectivity
Connection Method Wired
Diagnostic Port OBD2 Wired Extension, Harley Davidson 6 Pin
Information
Condition New
User Manual PDF
Warranty 12 months
Material
Durability Impact Resistant
Grip Type Ergonomic, Anti-Slip
Material Type ABS Plastic
Software
Language English, Spanish, French, Dutch, Deutsch.
Update On Demand
VCI
Bi-Directional No
OBD2 Protocols CAN, VPW, PWM, ISO9141, KWP2000 (Supports All 9 OBD2 Protocols)
Operating Humidity 10% ~ 70%
Operating Temperature -0℃ ~ 60℃
Smart Switch No
Storage Humidity <80%
Storage Temperature -20℃ ~ 70℃
Vehicle Support
Region Compatibility Asia, Australia, EU, UK, US
Service Functions None
Supported Makes Support all OBDII vehicles and all Harley Davidson Motorcycles

Maxidiagnosis OBDIIXPRO Harley Davidson 6 Pin Diagnostic Engine Scanner Tool

4/5 13 reviews

Engine Doctor For Harley Davidson Motorcycles

XP421-HD6

Features

  • ✅ Engine Diagnostic works on Cars, Vans and Motorbikes.
  • ✅ Multi-Language support (English, Spanish, French, German, Italian, Dutch, Polish, Chinese etc.)
  • ✅ Quickly indicate engine faults with.
  • Support all OBDII vehicles (UK, European, US and Asian)
  • ✅ Turns off Check Engine Light (MIL), clears codes.
  • Vehicle Battery Test
  • ✅ Displays DTC definitions on unit screen.
  • ✅ Self Test screen & keyboard
  • ✅ Views freeze frame data.
  • ✅ Displays monitor and I/M readiness status(emissions)
  • ✅ Identifies pending codes.
  • ✅ Retrieves vehicle information (VIN, CIN and CVN)
  • ✅ Supports CAN (Controller Area Network) and all other current OBD-II protocols.
  • ✅ Small in size and conveniently fits in your palm.

Plug and Play handheld OBD2 Scanner with multiple functions that enable DIY users to solve basic engine problems. Check the engine of all vehicles that comply with OBDII, 12V voltage with standardised 16-pin connector and use features like, code reading, code clearing, I/M Readiness, battery testing and much more.

Image Image

Battery State Test on Graph

  • Reads the real time voltage state of the battery and displays it on a graph.
  • Technicians suggest that battery testing before diagnosis can improve accuracy and display early warnings before diagnosis.

OBD II Protocols

  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)

Specifications

  • OBD Interface: OBDII, EOBD, Battery Check
  • Display: 2.4 inch
  • Operating Voltage: 6V to 16V
  • Operating Current: 53mA
  • Working Temperature: 0-62
  • Dimensions: 145x73x23mm
  • Package Weight: 300g

Set includes

  • 1x OBDIIXPRO XP421 Diagnostic Tool
  • 1x Harley Davidson 6 Pin cable
  • 1x Manual
Connectivity
Connection Method Wired
Diagnostic Port OBD2 Wired Extension, Harley Davidson 6 Pin
Information
Condition New
User Manual PDF
Warranty 12 months
Material
Durability Impact Resistant
Grip Type Ergonomic, Anti-Slip
Material Type ABS Plastic
Software
Language English, Spanish, French, Dutch, Deutsch.
Update On Demand
VCI
Bi-Directional No
OBD2 Protocols CAN, VPW, PWM, ISO9141, KWP2000 (Supports All 9 OBD2 Protocols)
Operating Humidity 10% ~ 70%
Operating Temperature -0℃ ~ 60℃
Smart Switch No
Storage Humidity <80%
Storage Temperature -20℃ ~ 70℃
Vehicle Support
Region Compatibility Asia, Australia, EU, UK, US
Service Functions None
Supported Makes Support all OBDII vehicles and all Harley Davidson Motorcycles
  • Brand: Maxidiagnosis
  • Product Code: XP421-HD6
  • Availability: Out Of Stock
Maxidiagnosis

£29.95

Warranty
UK Technical Support

Online payment
Easy Return
1st Class Delivery
