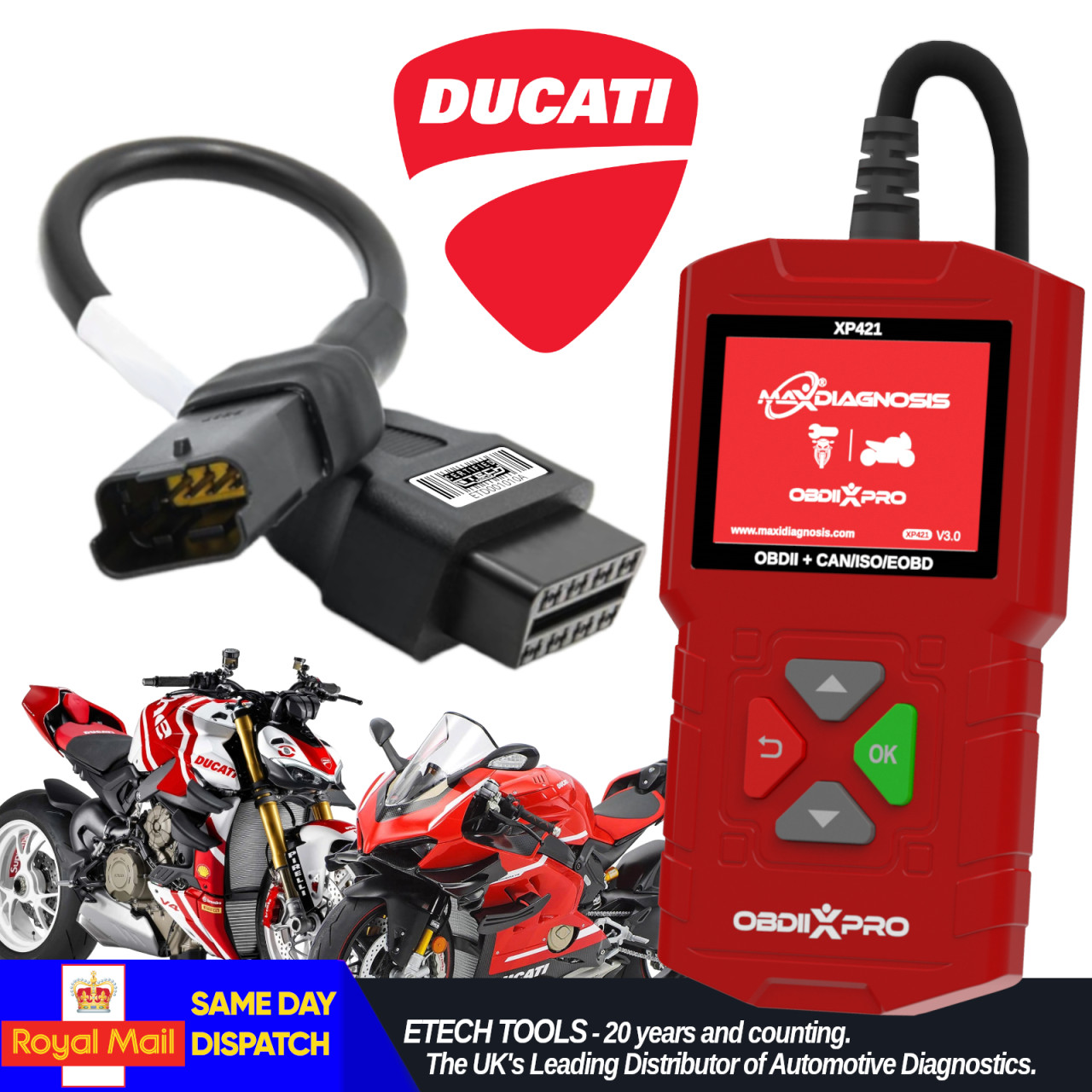

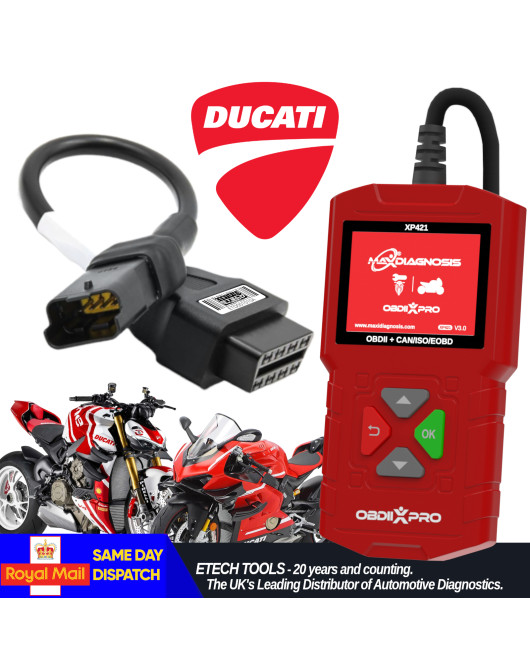

Engine Doctor For Ducati Motorcycles
XP421-DUC4
Features
- ✅ Engine Diagnostic works on Cars, Vans and Motorbikes.
- ✅ Multi-Language support (English, Spanish, French, German, Italian, Dutch, Polish, Chinese etc.)
- ✅ Quickly indicate engine faults with.
- ✅ Support all OBDII vehicles (UK, European, US and Asian)
- ✅ Turns off Check Engine Light (MIL), clears codes.
- ✅ Vehicle Battery Test
- ✅ Displays DTC definitions on unit screen.
- ✅ Self Test screen & keyboard
- ✅ Views freeze frame data.
- ✅ Displays monitor and I/M readiness status(emissions)
- ✅ Identifies pending codes.
- ✅ Retrieves vehicle information (VIN, CIN and CVN)
- ✅ Supports CAN (Controller Area Network) and all other current OBD-II protocols.
- ✅ Small in size and conveniently fits in your palm.
Plug and Play handheld OBD2 Scanner with multiple functions that enable DIY users to solve basic engine problems. Check the engine of all vehicles that comply with OBDII, 12V voltage with standardised 16-pin connector and use features like, code reading, code clearing, I/M Readiness, battery testing and much more.
Battery State Test on Graph
- Reads the real time voltage state of the battery and displays it on a graph.
- Technicians suggest that battery testing before diagnosis can improve accuracy and display early warnings before diagnosis.
OBD II Protocols
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2(5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
Specifications
- OBD Interface: OBDII, EOBD, Battery Check
- Display: 2.4 inch
- Operating Voltage: 6V to 16V
- Operating Current: 53mA
- Working Temperature: 0-62
- Dimensions: 145x73x23mm
- Package Weight: 300g
Set includes

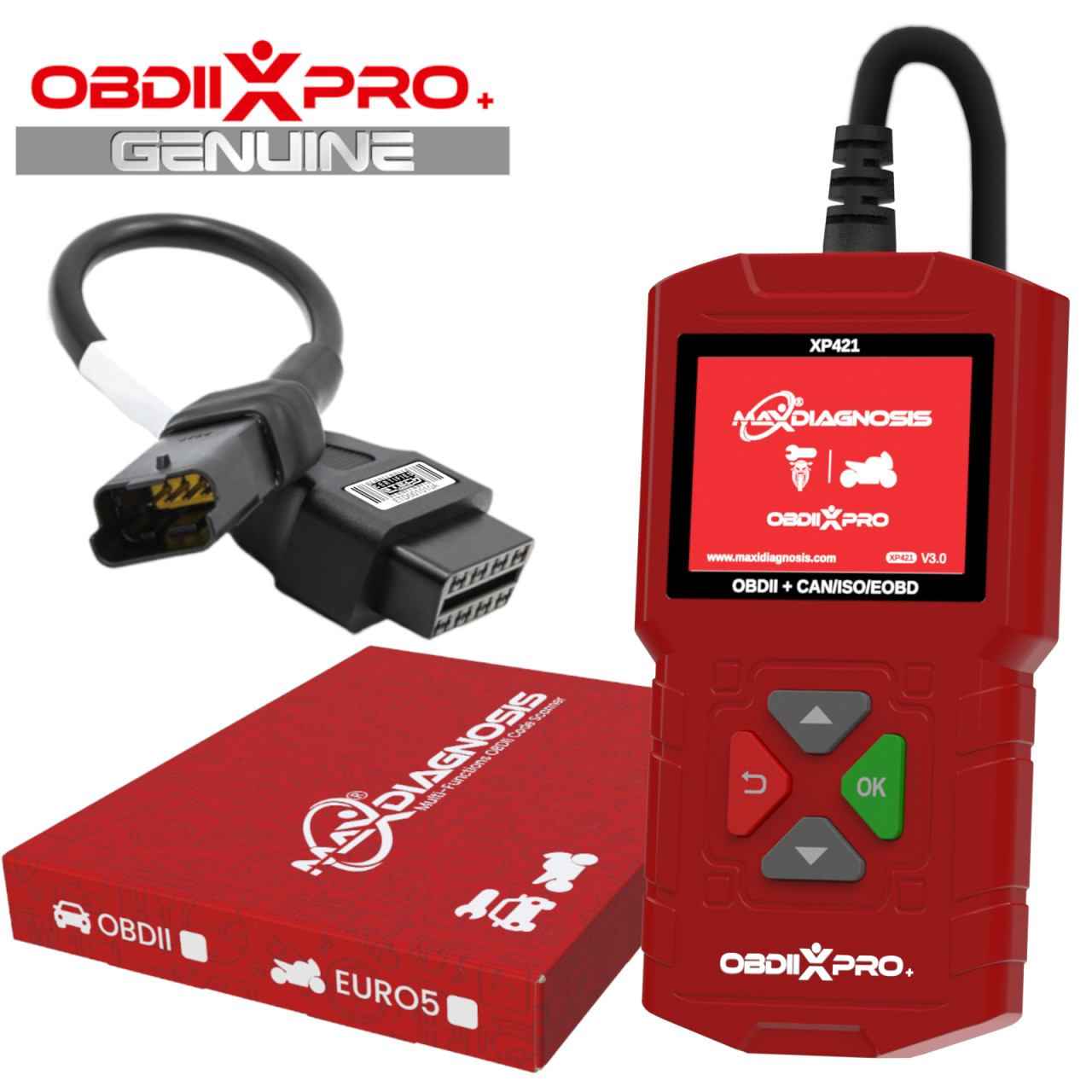

- 1x OBDIIXPRO XP421 Diagnostic Tool

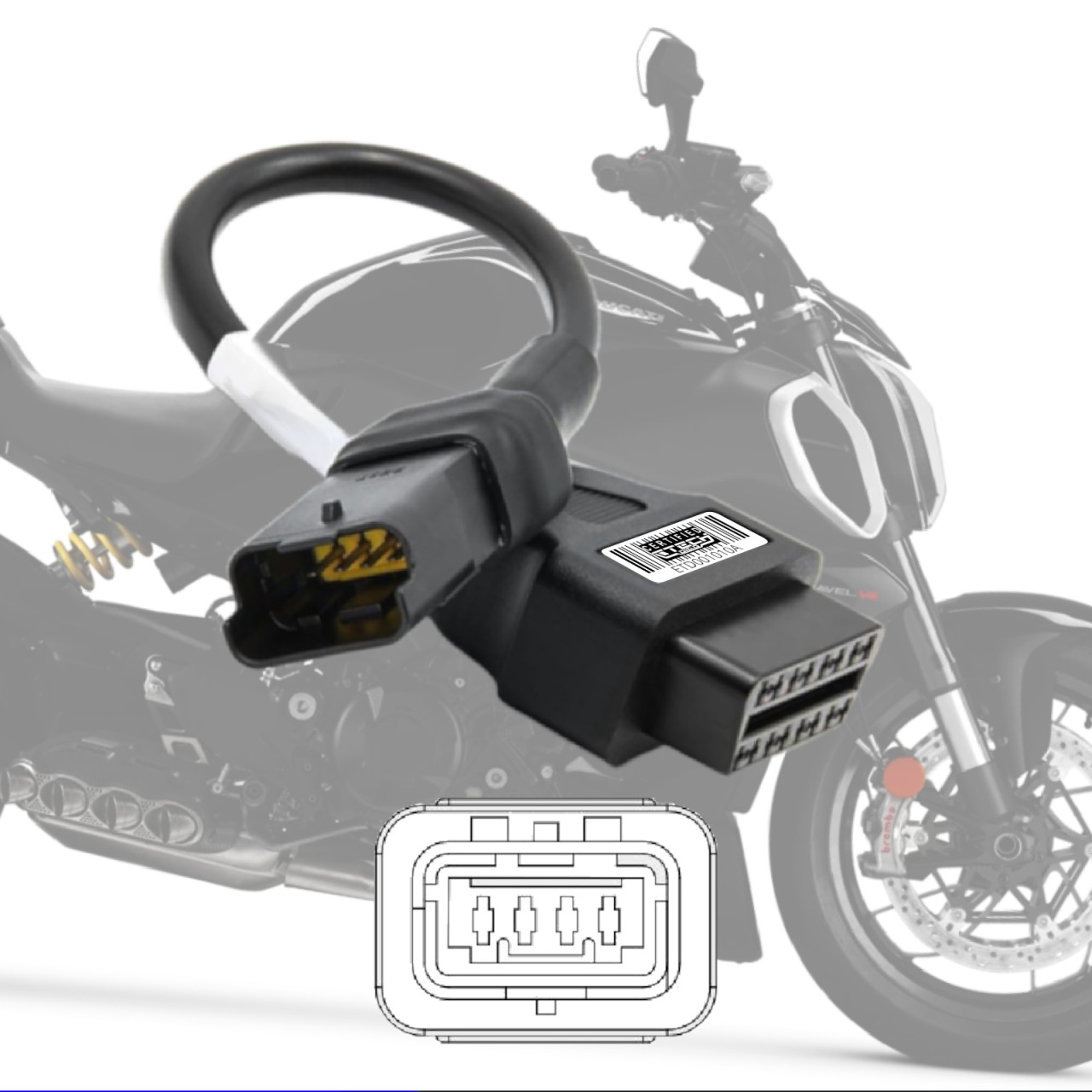

- 1x Ducati 4 Pin cable
- 1x Manual
| Connectivity | |
|---|---|
| Connection Method | Wired |
| Diagnostic Port | OBD2 Wired Extension, Ducati 4 Pin |
| Information | |
| Condition | New |
| User Manual | |
| Warranty | 12 months |
| Material | |
| Durability | Impact Resistant |
| Grip Type | Ergonomic, Anti-Slip |
| Material Type | ABS Plastic |
| Software | |
| Language | English, Spanish, French, Dutch, Deutsch. |
| Update | On Demand |
| VCI | |
| Bi-Directional | No |
| OBD2 Protocols | CAN, VPW, PWM, ISO9141, KWP2000 (Supports All 9 OBD2 Protocols) |
| Operating Humidity | 10% ～ 70% |
| Operating Temperature | -0℃ ～ 60℃ |
| Smart Switch | No |
| Storage Humidity | <80% |
| Storage Temperature | -20℃ ～ 70℃ |
| Vehicle Support | |
| Region Compatibility | Asia, Australia, EU, UK, US |
| Service Functions | None |
| Supported Makes | Support all OBDII vehicles and all Ducati Motorcycles |
